Fluke 700HTH-1 - Hydraulická testovacia hadica do 690 bar.

Značka: Fluke

10 000 psi, 700 bar

Dostupnosť Na objednávku
Môžeme doručiť do:
4.7.2024
Kód: 2811795
€1 612,80 €1 344 bez DPH
Fluke 700HTH-1 - Hydraulická testovacia hadica do 690 bar.
Značka: Fluke
Doprava zadarmo pre každý nákup nad 80€ s DPH vytvorený cez náš eshop.
Doprava zadarmo
pre každý nákup nad 80€ s DPH vytvorený cez náš eshop.
Široké možnosti platby na dobierku, kartou online alebo bankovým prevodom.
Široké možnosti
platby a doručenia pre vaše pohodlie
Tovar skladom odosielame v deň objednávky (do 13:00)
Tovar skladom
odosielame v deň objednávky kuriérom SPS (do 13:00).
Záručný, pozáručný servis teplomerov, multimetrov a iného metrologického vybavenia.
Servis a kalibrácia
teplomerov, multimetrov a iného metrologického vybavenia.


Description: The Fluke 700HTH hydraulic test hose is a 10,000 psi, 700 bar working pressure test hose that features stainless steel and nylon construction. The hose uses self-sealing fittings with easy finger tight connections. The hose has very low volumetric expansion and a negligible pressure drop at rated pressures.

Application:
The Fluke 700HTH allows connection to a calibration unit under test from a Fluke 700HTP hydraulic test pump in use with the Fluke 700 series pressure modules. The 700HTH is compatible with water and non-corrosive oil.

Included:

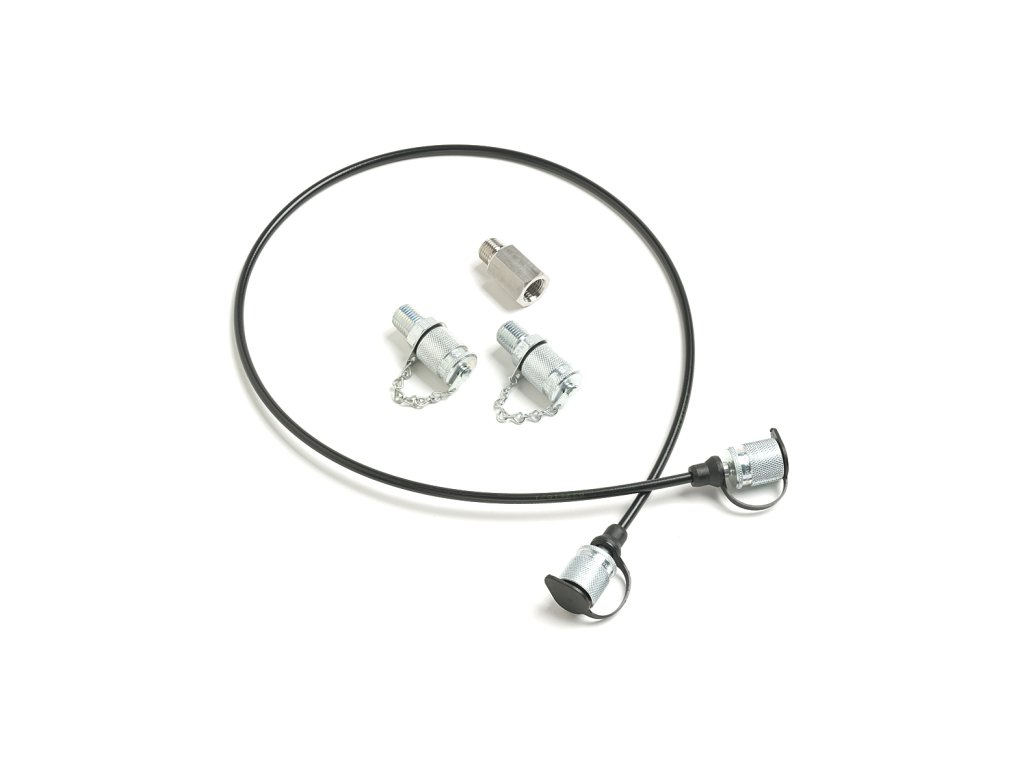

Hose and fittings to connect directly to the Fluke 700HTP test pressure port
Output connection is 1/4" NPT female with adapters (2) to convert to 1/4" and 1/8" NPT male
Instruction sheet

Material: Nylon, stainless steel, brass, PFTE, nitrile
Dimensions:
Length 1 meter, bore 0.3" / 3.2 mm, outer diameter 0.27" / 6.9 mm
Weight:
2.2 lbs. / 1.0 kg
Warranty:
One year








Accessories   >   Pressure   >    >
Fluke 700HTH-1 Hydraulic Test Hose
Mechanical & General Specifications
Minimum bend radius:
60 mm / 2.36 in.
Temperature
- 40 ºC to + 120 ºC, ( - 40 ºF to + 250 ºF)
Material
Construction: nylon, stainless steel, zinc, plated steel, and nitrile
Dimensions
.84 m (33 in) long without adapter fittings
Weight
412.8 grams (.910 oz)
Warranty
One year

Dodatočné parametre

Kategória: Tlakové hadičky
Médium: Vzduch, Voda, Olej
