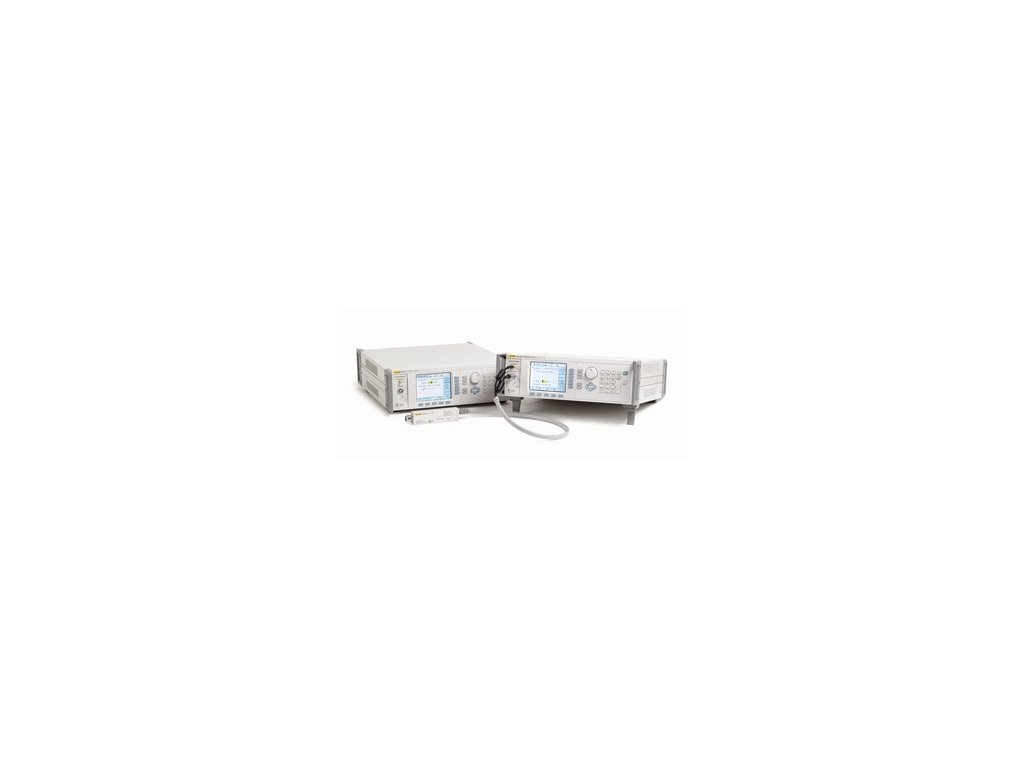

Fluke 9640A - Referenčný generátor (10 Hz do 4 GHz)

Značka: Fluke

Fluke 9640A-STD
4 GHz RF Reference Source including 50 Ω leveling head and HP 3335A GPIB command emulation

A unique combination of level accuracy, dynamic range and frequency in a single instrument

The Fluke 9640A and 9640A-LPN Reference Generators feature a unique combination of level accuracy, dynamic range and 4 GHz frequency capability to calibrate the broadest range of RF measurement workload. They have been designed specifically for metrology applications where the combination of level accuracy and dynamic range is important.

Dostupnosť Opýtajte sa
Kód: 719
€1 €0,83 bez DPH
Fluke 9640A - Referenčný generátor (10 Hz do 4 GHz)
Značka: Fluke
Fluke 9640A - Referenčný generátor (10 Hz do 4 GHz)
Ukončená výroba
Doprava zadarmo pre každý nákup nad 80€ s DPH vytvorený cez náš eshop.
Doprava zadarmo
pre každý nákup nad 80€ s DPH vytvorený cez náš eshop.
Široké možnosti platby na dobierku, kartou online alebo bankovým prevodom.
Široké možnosti
platby a doručenia pre vaše pohodlie
Tovar skladom odosielame v deň objednávky (do 13:00)
Tovar skladom
odosielame v deň objednávky kuriérom SPS (do 13:00).
Záručný, pozáručný servis teplomerov, multimetrov a iného metrologického vybavenia.
Servis a kalibrácia
teplomerov, multimetrov a iného metrologického vybavenia.

The 9640A replaces the level generator, power meter and sensors, and signal generator commonly used in RF calibration. The 9640A-LPN adds low phase noise capability for even broader, more demanding workload coverage, including the Agilent PSA series and Rohde & Schwarz FSU series of spectrum analyzers. Each accurate, dependable source gives you the signal range and precision you need in a single, easy-to-use instrument. You need fewer pieces of equipment, simplifying the calibration process and, ultimately, saving time and resources.

For even greater time savings, the 9640A and 9640A-LPN can be automated with MET/CAL® Plus Calibration Management Software. MET/CAL Plus software has become the de facto industry standard for automating the calibration process and managing cal lab inventory, because it provides a complete, scalable and affordable solution.

Broad workload coverage

The Fluke 9640A and 9640A-LPN Reference Generators can help you simplify the RF calibration process, by helping you to calibrate a broad range of RF test equipment:

  • Spectrum analyzers
  • Modulation meters and analyzers
  • RF power meters and sensors
  • Measurement receivers
  • Frequency counters
  • Attenuators
  • And more

High signal purity and low phase noise
The 9640A generates a pure sinusoidal signal with extremely low harmonics, spurious and residual modulations. This ensures that level accuracy will be maintained when you make measurements with wideband or narrow band detectors, or when the 9640A is intercomparing peak and RMS sensing instruments. You will avoid differences between the wideband/ narrow band and peak/RMS sensors, without requiring additional filters.

The importance of low phase noise on signal sources is often overlooked. The phase noise profiles of the Fluke 9640A are designed around the spectrum analyzer workload; the 9640A suits the vast majority, while the 9640A-LPN is capable of verifying the most demanding spectrum analyzers. Use the low phase noise specification to measure spectrum analyzer phase noise, close-in response and residual FM. Previous systems typically used two low noise signal generators to cover close-in and far-out measurements, or simply didn’t cover the far out (>100 kHz offset). Now you can handle both with a single 9640A-LPN.

Level accuracy and broad frequency coverage in one instrument
Calibration often involves use of several popular signal sources spanning a wide range of frequencies. Some of the most popular signal sources are now obsolete. You would normally need three signal generators, plus a power meter and sensors, to cover the entire frequency range of today’s workload with the required accuracy.

Whether your RF calibration workload has a frequency bandwidth of 4 GHz or 40 GHz, the Fluke 9640A handles the broadest portion of the RF calibration procedure in a cost effective solution.

Precision leveling head minimizes mismatch errors
A rugged, precision leveling head delivers the 9640A signals directly to the unit under test, minimizing losses, noise and mismatch errors, and maintaining the integrity of low-level signals. The head maintains signal precision and noise immunity throughout a 154 dB dynamic range, down to the very lowest levels at -130 dBm.

The leveling head reduces lead changes from 25 to just 5 during a typical calibration, extending unattended times in an automated system and reducing connector wear.

By integrating signal leveling and attenuation within the leveling head, the 9640A eliminates the need for separate, step attenuators, simplifying automation and reducing cost of ownership. It also eliminates the need to use an external power meter and sensors to characterize the output at different frequency and levels.

VSWR and mismatch errors are often the dominant source of measurement uncertainty in RF applications. Connecting the leveling head output directly to the load minimizes transmission line length and VSWR degradation due to cabling, allowing the full potential of its accuracy specifications to be realized at the load across the entire frequency range.

The standard 9640A and 9640A-LPN models are supplied with a 50 Ohm leveling head and the models have additional 75 Ohm leveling head. Mainframe and heads are calibrated together as a system.

Internal AM and FM modulation
The 9640A Reference Source’s internal modulation capability makes it suitable for applications that require precision modulation to be applied to the output signal, such as modulation analyzer calibration and spectrum analyzer sweep time testing using AM methods. You don’t need additional function generators as a low frequency modulation source – the 9640A delivers it all. Frequency modulation is available at rates up to 300 kHz for applications such as modulation analyzer testing. Amplitude modulation is available at depths of up to 99 % and rates up to 200 kHz.

Sweep function
RF applications often require a frequency sweep. The 9640A’s sweep functions simplify the application of manual legacy spectrum analyzer frequency response testing, as well as filter response.

External frequency reference input/output
Selectable external frequency reference input is available on the rear panel of the 9640A. The input allows you to lock the frequency output to an external reference, such as the Fluke 910R Rubidium Standard, for applications where high clock accuracy or use of a common reference frequency is important. The frequency reference output allows a UUT to be frequency locked to the 9640A internal reference clock. This configuration is often required to reduce frequency offset errors that may occur between the reference source and the UUT

HP 3335A and optional HP 8662A/8663A command emulation
The HP 3335A Synthesizer/Level Generator, discontinued long ago, has been an essential component in many users" RF calibration systems. Until now, there have been few alternatives to match its level and attenuation accuracy. The 9640A RF Reference Source matches or exceeds HP 3335A performance, and has a GPIB command interpreter capable of emulating the HP 3335A in a calibration system (including 75 Ohm applications).

Another long-discontinued instrument is the HP 8662A or HP 8663A low phase noise synthesizer. The 9640A-LPN is designed to match or exceed all HP 8662A/8663A performance and functionality within the calibration system. HP 8662 and HP 8663 GPIB command emulation is available as a “try before you buy” optional license key enabling on the 9640A-LPN.

Either way, you can greatly simplify integration of the 9640A into an existing automated system.

Calibration Instruments   >   All Calibration Instruments   >
9640A RF Reference Source
Frequency range
  10 Hz to 4 GHz
Frequency resolution
  <100 MHz: 0.001 Hz
  100 MHz: 11 digits
Frequency accuracy
  0.04 ppm + 0.16mHz
Frequency sweep
  10 Hz to 4 GHz, linear or logarithmic
External reference input
  1 MHz to 20 MHz at 1 MHz steps
Frequency reference output
  1 MHz or 10 MHz, user selectable.
Amplitude range
Into 50 Ω: -130 dBm to +24 dBm
  (0.2 μV to 10 V pk-pk)
  125 MHz: +20 dBm
  1.4 GHz: +14 dBm
Into 75 Ω: -136 dBm to +18 dBm
  125 MHz: +14 dBm
  1.4 GHz: +8 dBm
Amplitude resolution
  0.001 Db
Absolute level accuracy into 50 Ω
100 kHz: -48 to ±24 dBm ± 0.05 dB
  -74 to -48 dBm ± 0.2 dB
  -94 to -74 dBm ± 0.5 dB
  -130 to -94 dBm ± 0.2 dB
100 MHz: -48 to ±24 dBm ± 0.05 dB
  -74 to -48 dBm ± 0.2 dB
  -94 to -74 dBm ± 0.5 dB
  -130 to -94 dBm ± 0.2 dB
4 GHz: -74 to +20 dBm ± 0.5 dB
  -84 to -74 dBm ± 1.0 dB
  -94 to -74 dBm ± 0.5 dB
  -130 to -94 dBm ± 0.2 dB
Attenuation accuracy into 50 Ω
  10 MHz to 128 MHz, relative to +16 dBm output: 0 to 33 dB ± 0.35 dB, 33 to 64 dB ± 0.04 dB, 64 to 100 dB ± 0.1 dB
Output impedance
  50 Ω with precision N-series male connector (Optional 75 Ω leveling head available)
  500 MHz: 1.1, 1 GHz: 1.2, 3 GHz: 1.3, 4 GHz:1.3 (50 Ω output)
Spectral purity
  Harmonics ≤-60 dBc. Spurious ≤-75 dBc, > 3 kHz offset
Phase noise
9640A: 10 kHz offset -118 (-122) dBc/Hz, 1 MHz offset -124 (-130) dBc/Hz
9640A-LPN: 10 kHz offset -134 (-138) dBc/Hz, 1 MHz offset -148 (-152) dBc/Hz
Internal modulation
Amplitude modulation sinusoidal and triangular waveform
  0.1% to 99% depth
  1 Hz to 220 kHz rate
Frequency/phase modulation: sinusoidal only
  10 Hz to 750 kHz deviation (≤1000 rad)
  1 Hz to 300 kHz rate
  Available rate and depth/deviation settings are limited at some carrier frequencies
  Operating: 0 °C to 50 °C, 23 °C ± 5 ºC for specified performance.
  Storage: -20 °C to +70 °C
Calibration report
  Detailed calibration report that states actual performance to specification. You can see actual performance data for your source, giving you much better uncertainties than if you relied on the guaranteed specification alone.
Calibration interval
  All specifications apply to a 1 year calibration interval at a nominal calibration temperature of 23 °C.
Standard interfaces
  IEEE488.2 (GPIB)
GPIB command emulation
9640A, 9640A-LPN: HP 3335A*
9640A-LPN + Opt 8662/8663 GPIB: HP 3335A, HP 8662A, HP 8663A*
  433 mm (17.0 in) wide, 381 mm (15.0 in) high and 559 mm (22.0 in) deep. Mounts within industry-standard 483 mm (19 in) rack-mount frames when fitted with Y9600 rack mounting kit.
  18 kg (40 lbs)

*Notes: Fluke has extensively tested the command and functional emulation of the legacy HP 3335A and HP 8662A/8663A and will support customers in resolving any unforeseen difficulty. However, Fluke does not guarantee that complete emulation will be possible for all systems, software and procedures encountered.

The 9640A cannot emulate the HP 3335A and HP 8662A/8663A simultaneously on the GPIB interface. However, testing has shown that many procedures and software can run successfully by manually switching the 9640A emulation personality at the signal generator lead change points.
