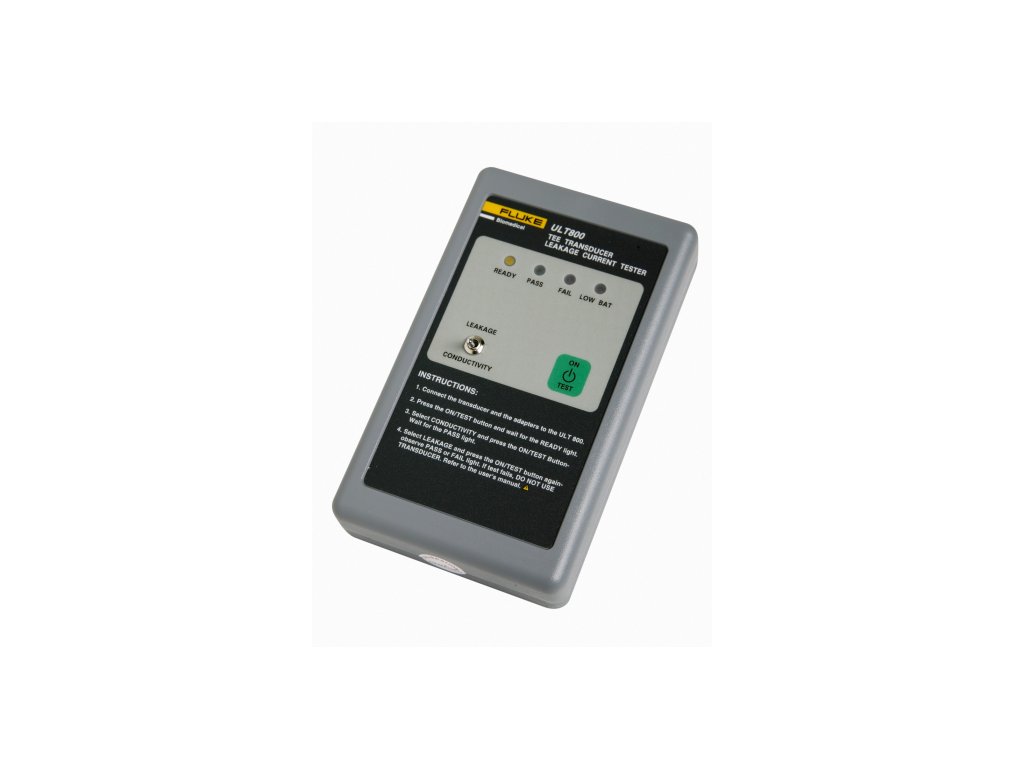

Fluke Bm. ULT800 - Tester elektrickej bezpečnosti ultrazvukových sond

Značka: Fluke

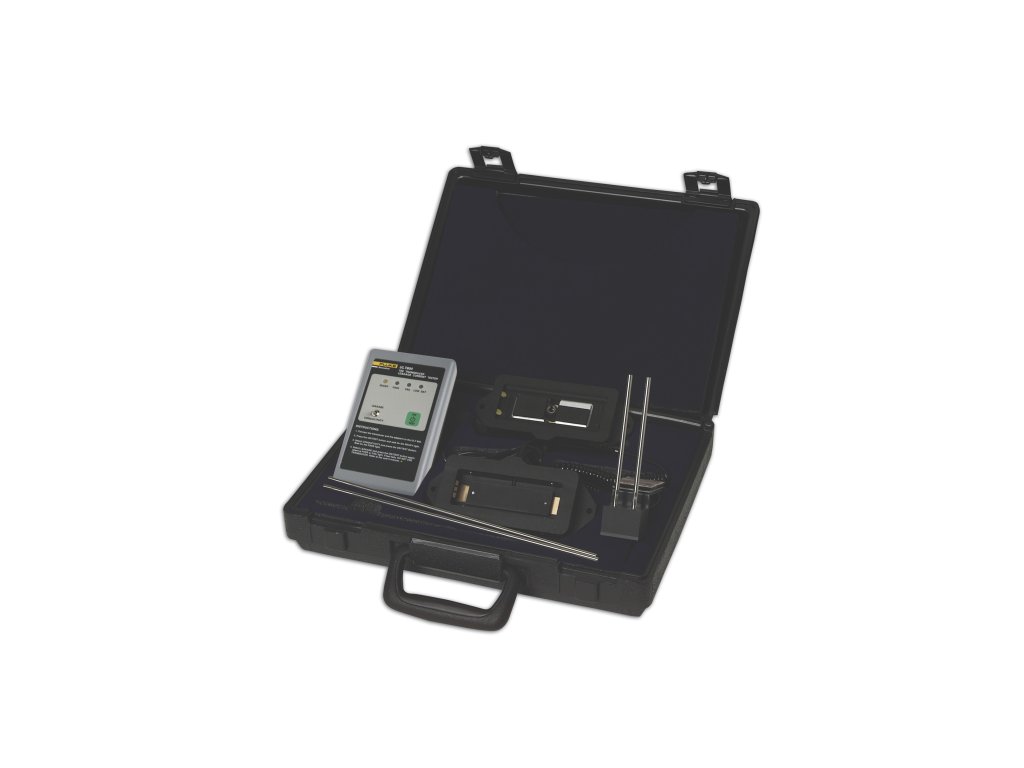

The ULT800 tests the electrical safety of ultrasound transducers independent of their ultrasound machines. A variety of adapters allow for testing of many different makes and models, including transesophageal echocardiography (TEE) transducers. With the ULT800, transducer testing easily fits into routine disinfecting procedures. Technicians conduct the tests in a cleaning basin at the beginning of the day and between patients. If a transducer is electrically safe for patient use, the green PASS lamp lights. Simple Pass/Fail indicators make it simple to use even non-technical medical personnel, such as sonographers and central sterile-supply technicians, can perform the tests The ULT800 is available by itself or as a kit, which includes a dual-conductivity electrode and carrying case.

Dostupnosť Opýtajte sa
Kód: 1350
€1 €0,83 bez DPH
Fluke Bm. ULT800 - Tester elektrickej bezpečnosti ultrazvukových sond
Značka: Fluke
Fluke Biomedical ULT800 - Tester elektrickej bezpečnosti ultrazvukových sond;;
Ukončená výroba
Doprava zadarmo pre každý nákup nad 80€ s DPH vytvorený cez náš eshop.
Doprava zadarmo
pre každý nákup nad 80€ s DPH vytvorený cez náš eshop.
Široké možnosti platby na dobierku, kartou online alebo bankovým prevodom.
Široké možnosti
platby a doručenia pre vaše pohodlie
Tovar skladom odosielame v deň objednávky (do 13:00)
Tovar skladom
odosielame v deň objednávky kuriérom SPS (do 13:00).
Záručný, pozáručný servis teplomerov, multimetrov a iného metrologického vybavenia.
Servis a kalibrácia
teplomerov, multimetrov a iného metrologického vybavenia.

Key Features

  • Handheld
  • Stand-alone operation
  • Direct measurement of leakage current
  • Battery-operated
  • Independent of 120 V or 240 V systems
  • Built-in self-test circuit
  • Auto shut-off to conserve battery

ULT800 System Configuration

Using the ULT800 with a disinfecting/testing tray and the 600/220 Dual Conductivity Probe to test a TEE transducer.



Component Key:

  1. ULT800
  2. 600/220 Dual-conductivity probe
  3. Ultrasound transducer adapter (to match the transducer being tested)

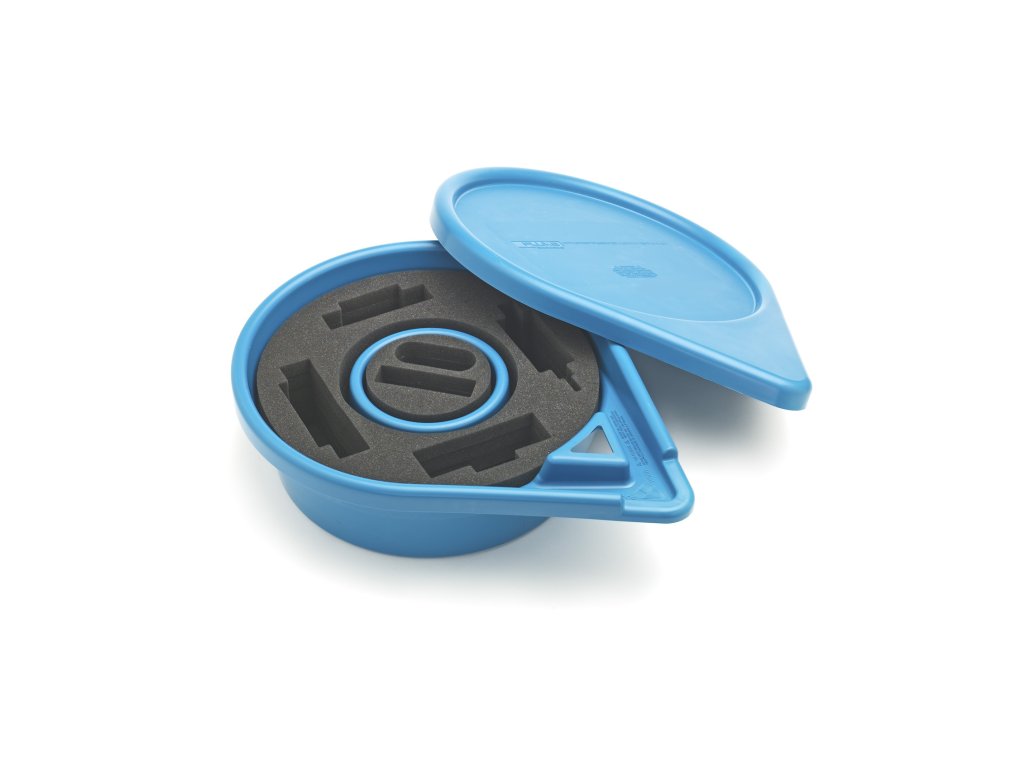

  4. Disinfecting/testing tray
  5. Ultrasound transducer under test
  6. Ultrasound transducer connection block
ULT800 Ultrasound Transducer Leakage Current Tester
Technical
Conductivity:
Limit To Pass: > 133 μA + 1%
Leakage:
Limit To Pass: < 185 μA + 1%; > 20 μA + 1%
Environmental
Temperature:
Operating: 59°F to 104°F (15°C to 40°C)
Storage: 59°F to 149°F (15°C to 65°C)
Humidity:
90% max
General Information
Power:
9 V alkaline battery, approximately 1000 uses
per battery
Dimensions:
6.5 in L x 3.7 in W x 1.5 in H
(17 cm L x 10 cm W x 4 cm H)
Weight:
0.75 lb (0.34 kg)
