Fluke Networks DSX-600 CableAnalyzer™
Certifikačný prístroj metalickej kabeláže kategórie Cat 3 až Cat 6A / Class EA, 500 MHz
Doprava zadarmo
pre každý nákup nad 80€ s DPH vytvorený cez náš eshop s doručením na Slovensko.
Široké možnosti
platby a doručenia pre vaše pohodlie. Prijímame platobné karty, Google Pay alebo Apple Pay.
Tovar skladom
odosielame v deň objednávky kuriérom SPS alebo službou Packeta (objednávky do 13:00).
Servis a kalibrácia
teplomerov, multimetrov a iného metrologického vybavenia vrátane záručného a pozáručného servisu.
Ekonomické riešenie certifikácie metalickej kabeláže.
Fluke Networks DSX-600:
- Certifikačné meranie pre kategórie od Cat 3/Class C až do Cat 6a/Class Ea
- Meranie do 500 MHzCat 6a a Class Ea zmeria za 10 sekúnd
- Taptive™ dotykový displej
- Správa projektov ProjX ako pri špičkových modeloch Versiv DSX-5000 a DSX-8000
- Pokročilá diagnostika problémových miest a nové meranie prepojenia tienenia prispeje k rýchlemu odstráneniu problémov
- Správa prístroja a výsledkov cez LinkWare a LinkWare Live cloud

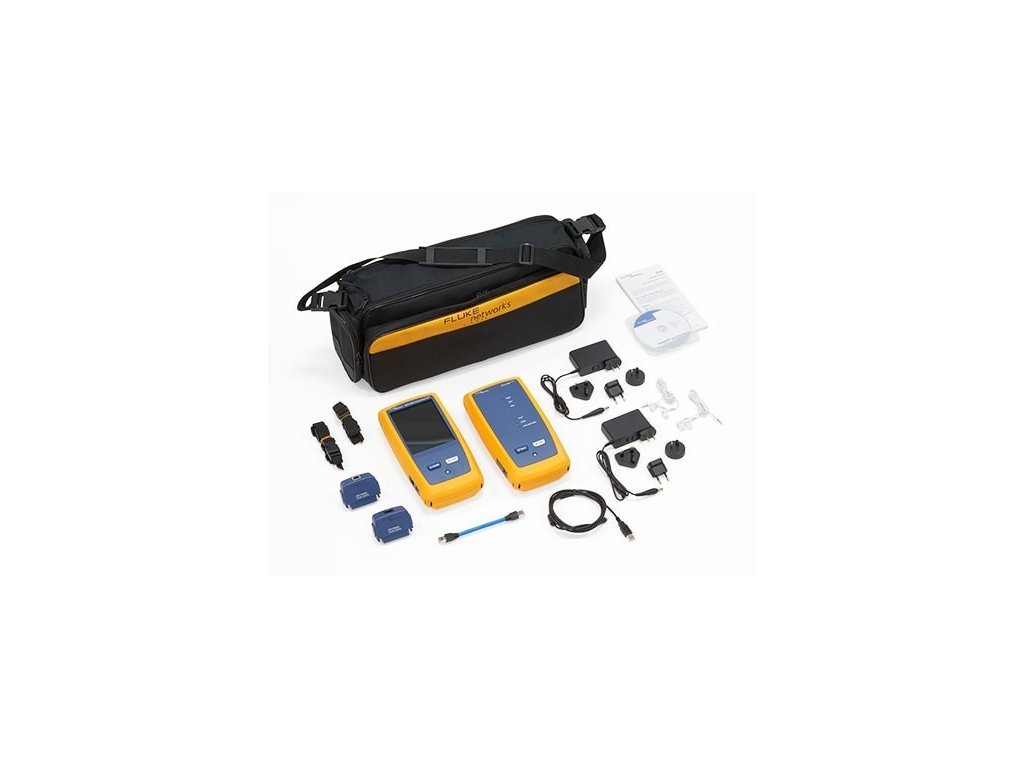

DSX-600 CableAnalyzer obsahuje:
- DSX-600 CableAnalyzer hlavnú jednotku a vzdialený modul
- 2 × Cat 6A / Class EA channel adaptér
- RJ45 reference patch cord - 15 cm
- Textilná brašňa
- USB kábel
- 2 × sieťové zdroje / nabíjačky
- návod DSX-600 Getting Started

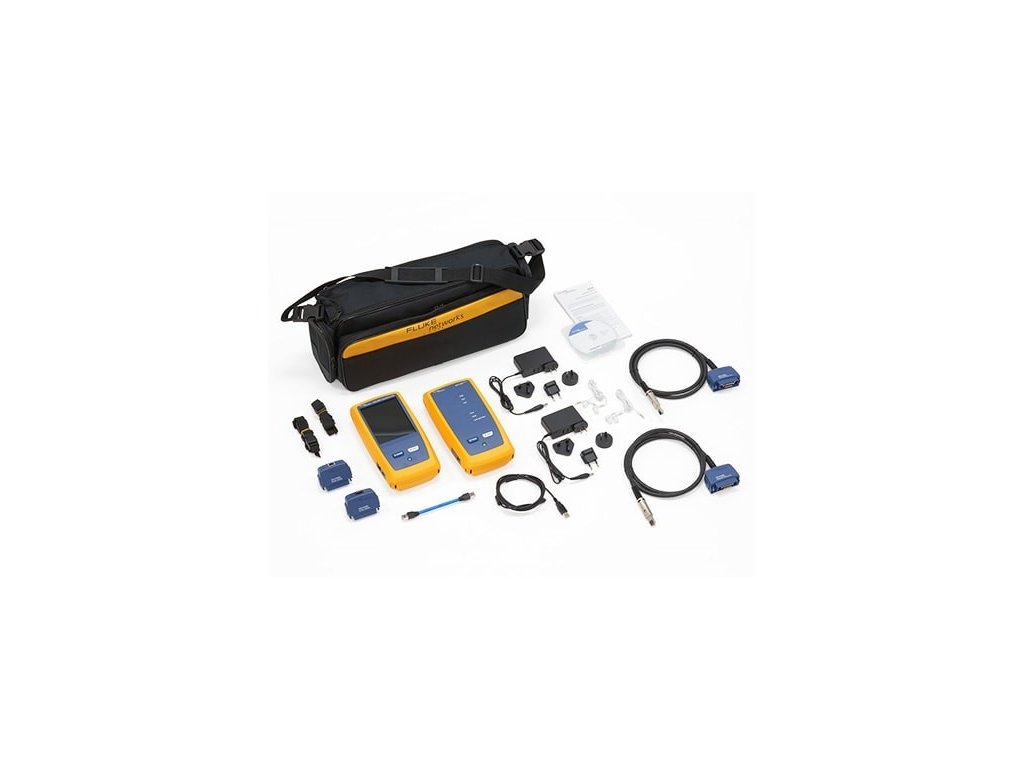

DSX-600 Pro CableAnalyzer obsahuje:
- DSX-600 CableAnalyzer hlavnú jednotku a vzdialený modul
- 2 × Cat 6A / Class EA channel adaptér
- RJ45 reference patch cord - 15 cm
- 2 × Permanent Link Adaptér
- Textilná brašňa
- USB kábel
- 2 × sieťové zdroje / nabíjačky
- návod DSX-600 Getting Started
| Feature | DSX-600 | Versiv DSX2-5000 | Versiv DSX2-8000 |
|---|---|---|---|
| Description | Essential Cat 6A and Class EA copper tester | Cat 6A and Class FA copper tester | Fastest, most accurate Cat 8 and Class I/II copper cable tester |
| Cat 3 – Cat 6A / Class EA | X | X | X |
| Cat 6A / Class FA | X | X | |
| Cat 8 / Class I/II | X | ||
| Maximum Frequency | 500 MHz | 1000 MHz | 2000 MHz |
| Autotest Time | 10 sec Class EA/Cat 6A 9 sec Class E/Cat 6 |
10 sec Class EA/Cat 6A 9 sec Class E/Cat 6 |
16 sec Cat 8 / Class I/II 8 sec Class EA/Cat 6A 7 sec Class E/Cat 6 |
| Shield Integrity Test | X | X | X |
| Internal Memory | ≈ 12,000 Cat 6A with plots | ≈ 12,000 Cat 6A with plots | ≈ 12,000 Cat 6A with plots |
| Battery Life | ≈ 8 Hours | ≈ 8 Hours | ≈ 8 Hours |
| Cable Identifier Length | 60 characters | 60 characters | 60 characters |
| Permanent Link Adapter | Optional | X | X |
| ProjXTM Project Management | X | X | X |
| TaptiveTM Gesture-based User Interface | X | X | X |
| Advanced Fault Info Troubleshooting | Limited – (HDTDR & HDTDX) | X | X |
| PoE Resistance Unbalance | X | X | |
| Integrated Alien Crosstalk Capability | X | X | |
| LinkWareTM Professional Reports | X | X | X |
| LinkWareTM Live capable | X | X | X |
| TCL Measurement | X | X | |
| Coax Adapters | Optional | Optional | Optional |
| M12 Adapters | Optional | Optional | Optional |
| Patch Cord Adapters | Optional | Optional | |
| Fiber – OLTS, OTDR & Inspection | Optional | Optional |
Specifications
| Cable Types | |
| Shielded and unshielded pair LAN cabling | TIA Category 3, 4, 5, 5e, 6, 6A: 100 Ω ISO/IEC Class C, D, E, EA: 100 Ω and 120 Ω |
| General Specifications | |
| Speed of Autotest | Full 2-way Autotest of Category 5e or 6/Class D or E: 9 seconds; Full 2-way Autotest of Category 6A/Class EA: 10 seconds |
| Supported test parameters (test standard determines parameters and frequency range reported) | Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss (Attenuation), Return Loss (RL), Near End Crosstalk (NEXT), Attenuation-to-Crosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (PS ELFEXT), Power Sum NEXT, Power Sum ACR-N |
| Maximum frequency | 500 MHz |
| Test Result Storage | 12,000 Cat 6A with plots |
| Display | 5.7 in LCD display with a projected capacitance touchscreen |
| Dimensions | Main Unit and Smart Remote: 6.67 cm × 13.33 cm × 27.94 cm |
| Weight | 1.36 kg |
| Battery | Lithium ion battery pack, 7.2 V |
| Battery Life | 8 hours |
| Battery Charge Time | 4 hours (below 40° C, with tester off) |
| Environmental Specifications | |
| Operating Temperature | 0° C to 45° C |
| Storage Temperature | -30° C to +60° C |
| Operating relative humidity (% RH without condensation) | 0% to 90%, 0° C to 35° C 0% to 70%, 35° C to 45° C |
| Vibration | Random, 2 g, 5 Hz -500 Hz |
| Shock | 1 m drop test with and without module and adapter attached |
| Safety | CSA 22.2 No. 61010, IEC 61010-1 3rd Edition |
| Altitude | 4,000 m 3,200 m with ac adapter |
| EMC | EN 61326-1: Portable |
