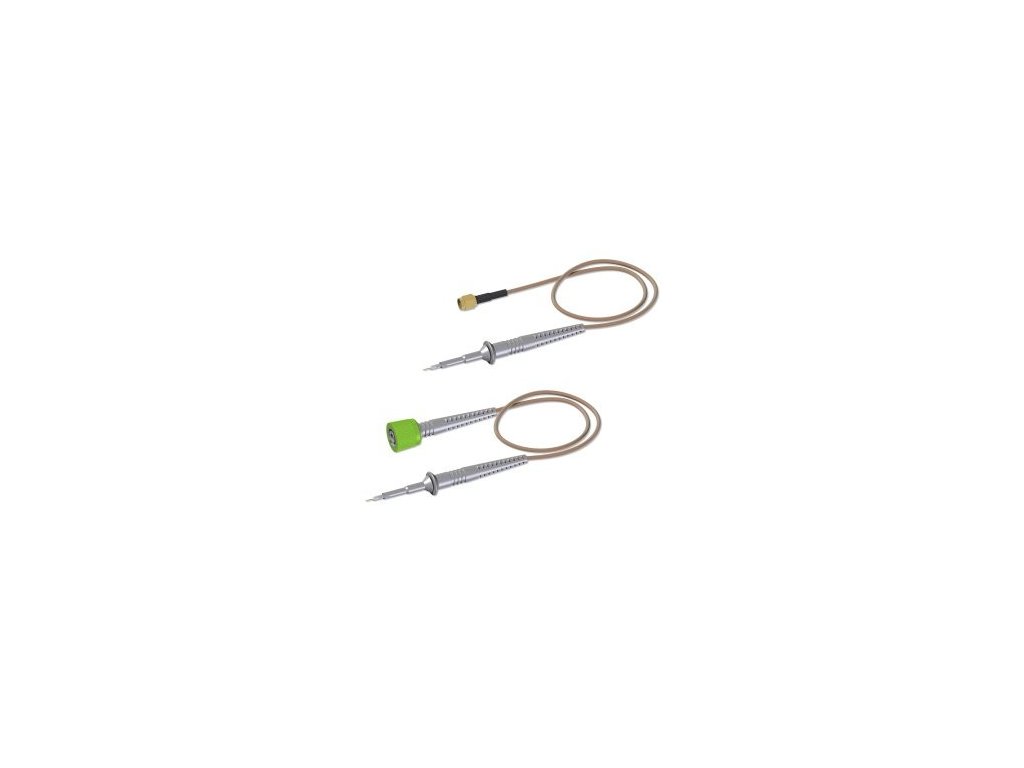

Pico 1.5 GHz passive SMA oscilloscope probe TA061
These very high-bandwidth 1.5 GHz probes are suitable for use with high-speed oscilloscopes and spectrum analyzers. Applications include digital communications and RF design. The TA061 has an SMA connector, making it ideal for use with PicoScope 9000 Sampling Oscilloscopes / Digital Signal Analyzers, while the TA062 has a BNC connector.
Pico 1.5 GHz passive SMA oscilloscope probe TA061
Ukončená výroba
Doprava zadarmo
pre každý nákup nad 80€ s DPH vytvorený cez náš eshop s doručením na Slovensko.
Široké možnosti
platby a doručenia pre vaše pohodlie. Prijímame platobné karty, Google Pay alebo Apple Pay.
Tovar skladom
odosielame v deň objednávky kuriérom SPS alebo službou Packeta (objednávky do 13:00).
Servis a kalibrácia
teplomerov, multimetrov a iného metrologického vybavenia vrátane záručného a pozáručného servisu.
Features:
- Small size - 2.5 mm diameter at the probe tip
- New IC contact system for 0.5 to 1.27 mm pitch
- Interchangeable spring contact tip
- Ideal for measurements of SMT components
- Coaxial design
- Low input capacitance
- Choice of SMA or BNC connector
| Model | TA061 | TA062 |
|---|---|---|
| Connector type | SMA | BNC |
| Attenuation | 10:1 | 10:1 |
| Input resistance | 500 Ω | 500 Ω |
| Input capacitance | 2 pF | 2 pF |
| Input coupling of the measuring instrument | 50 Ω | 50 Ω |
| System bandwidth (-3 dB) | 1.5 GHz | 1.5 GHz |
| Risetime (10% - 90%) | 240 ps | 240 ps |
| Rated voltage | 12 V DC incl AC pk | 12 V DC incl AC pk |
| Cable length | 1.3 m (approx 4 ft 3 in) | 1.3 m (approx 4 ft 3 in) |
| Weight (probe only) | 48 g (approx 1.7 oz) | 48 g (approx 1.7 oz) |
| Operating temperature | 0 °C to +50 °C | 0 °C to +50 °C |
| Storage temperature | -40 °C to +71 °C | -40 °C to +71 °C |
