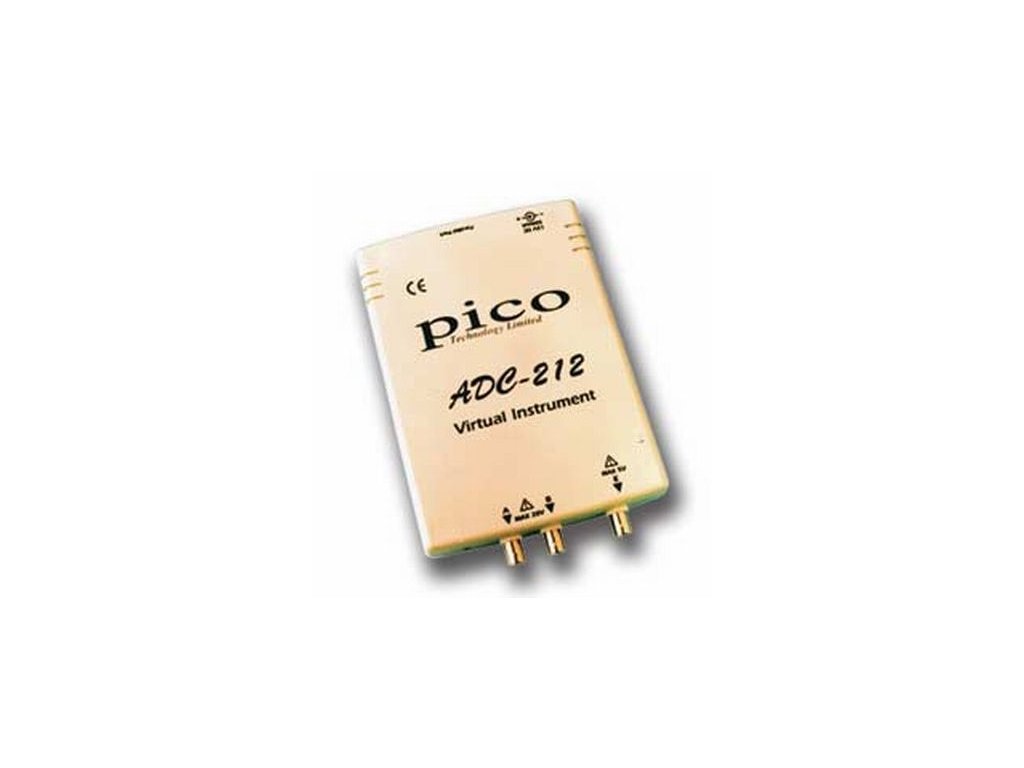

Pico ADC-212/3 Oscilloscope PP108E (10mV to 20V, 11 ranges)
The ADC-212/3 is a high resolution, high precision oscilloscope. Unlike most digital storage oscilloscopes which typically have 8 bit resolution and poor DC accuracy, these units are accurate to 1% and have 12 bit resolution. This makes them ideal for audio spectrum analysis and noise / vibration measurements.
Pico ADC-212/3 Oscilloscope PP108E (10mV to 20V, 11 ranges)
Ukončená výroba
Doprava zadarmo
pre každý nákup nad 80€ s DPH vytvorený cez náš eshop s doručením na Slovensko.
Široké možnosti
platby a doručenia pre vaše pohodlie. Prijímame platobné karty, Google Pay alebo Apple Pay.
Tovar skladom
odosielame v deň objednávky kuriérom SPS alebo službou Packeta (objednávky do 13:00).
Servis a kalibrácia
teplomerov, multimetrov a iného metrologického vybavenia vrátane záručného a pozáručného servisu.
- High resolution and precision
- Ideal for audio spectrum analysis
- Ideal for automotive fault finding
- 32,000 sample memory
- Oscilloscope and data logging software included
As well as high vertical resolution, the ADC-212/3 has a large 32,000 sample waveform buffer, so it is possible to capture complex signals and then expand areas of interest to show fine detail.
| Product | ADC-212/3 |
|---|---|
| Resolution | 12 bits |
| Channels | 2 x BNC + 1 external trigger |
| Voltage Ranges | ±10 mV to 20 V in 11 ranges |
| Overload protection | ±100 V |
| Input Impedance | 1 MΩ |
| Sampling Rate | 3 MS/s |
| Accuracy | ±1% |
| Scope Timebases | 2µ s/div to 50 s/div |
| Spectrum Ranges | 0 to 1.5 MHz, 80 dB dynamic range |
| Analog Bandwidth | 1.5 MHz |
| Buffer Size | 32 kS |
| Power Supply | 500 mA @ 12 V |
| Dimensions | 140 x 190 x 45 mm (5.51 x 7.48 x 1.77 in) |
| Output connector | D25 to PC parallel port |
| Supplied Software | PicoScope: 32-bit editions of Windows XP (SP2) and Vista PicoLog: 32-bit editions of Windows XP (SP2) and Vista Software Development Kit Linux drivers |
