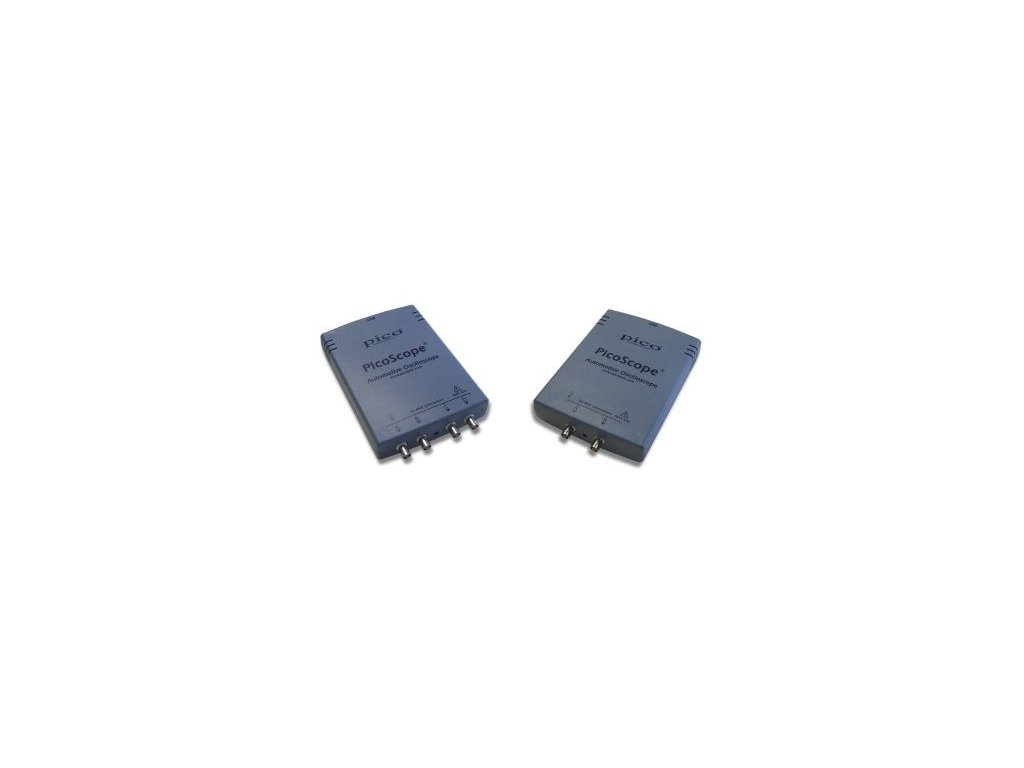

Two different PicoScope 3000 labscopes are available: the PicoScope 3223 2-channel oscilloscope, and the PicoScope 3423 4-channel oscilloscope. Chip tunning osciloskop.

For users on a restricted budget, or without a USB compatible PC, the ADC-212 lab scope can be connected to a parallel port, and is suitable for basic automotive fault diagnosis.

The PicoScope 3223 is a dual-channel oscilloscope and is capable of capturing waveforms from up to 2 sensors at once. To make it easier to diagnose faults on complicated systems, the 4-channel PicoScope 3423 can capture waveforms from up to 4 sensors at once. For example, with a PicoScope 3423 you are able to capture the injector voltage signals from all 4 injectors from Bank 1 of a V8 cylinder engine.

Easily capture large and complex waveforms

The 512,000 sample buffer of the PicoScope automotive oscilloscope range allows complex waveforms to be captured in great detail — even if they last for long periods of time; whilst the high, 12-bit, resolution makes it possible to expand the captured waveform to allow you to examine every last detail of the waveform.

Fast and easy to use

Just plug your PicoScope into the USB port on any standard Windows based PC, load the supplied PicoScope Automotive software, and then simply select the component/system to be tested from a drop down menu. The software will automatically configure the scope for you as well as give you advice on what the waveform should look like, and general technical information on the item being tested.

Looking at unknown signals is also quick and easy thanks to PicoScope’s Auto Setup function: simply click the Auto Setup button and PicoScope will automatically set up the timebase, channels and trigger configuration to display any signals that it finds on your oscilloscope’s inputs.

In the workshop or on the road — the choice is yours

The PicoScope is powered directly from the USB port of your computer — eliminating the need for power leads or battery packs, and making the PicoScope suitable for use both for workshop-based and mobile automotive diagnostics.

Your complete automotive diagnostic solution

PicoScope automotive oscilloscopes are available separately or as part of a Pico Automotive Diagnostics Kit.

Designed by automotive enthusiasts, Pico’s award-winning automotive kits contain all you need to test and measure virtually all of the electrical and electronic components and circuits in any modern vehicle — all in an easy-to-carry case that protects your kit and ensures you never have to search for that elusive test lead, clip or probe.

  PicoScope 3223 PicoScope 3423
Resolution 12 bits
Channels 2 x BNC 4 x BNC
Voltage ranges ±20 mV to 50 V in 11 ranges
Overload protection ±100 V
Inputs 1 MΩ resistance
20 pF capacitance
Sampling rate 20 MS/s (1 channel)
10 MS/s (2 channels)
20 MS/s (1 channel)
10 MS/s (2 channels)
5 MS/s (3 or 4 channels)
Accuracy ±1%
Analog bandwidth 10 MHz
Buffer size 512 k samples
Dimensions 140 x 190 x 45 mm (5.51 x 7.48 x 1.77 in)
PC Connection USB 2.0 (USB 1.1 compatible) — cable supplied
Power supply From USB port (500 mA @ 4.5V)
Environmental +20 °C to +30 °C for quoted accuracy, 0 °C to +70 °C overall.
20 to 90% RH
Supplied software PicoScope Automotive for Windows XP (SP2) and Vista
PC requirements Processor: Pentium class processor or equivalent
Memory: 32 MB minimum
Disk space: 10 MB minimum
Operating system: Microsoft Windows XP/Vista
Ports: USB 1.1 compliant port minimum. USB 2.0 compliant port recommended. Must be connected direct to the port or a powered USB hub
