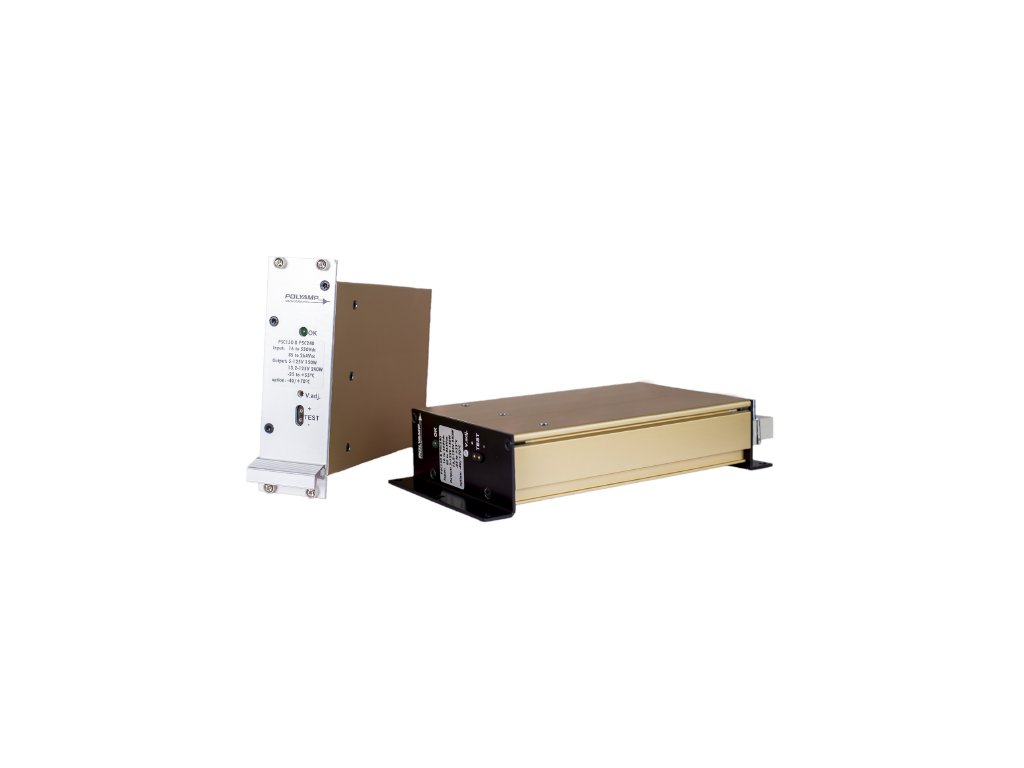

Polyamp PSC DC/DC menič 80 .. 240 W
Odolné meniče so širokým rozsahom vstupného napájania 10 .. 550 V DC. Odolné voči prepólovaniu napájacieho napätia. Konvenčne chladené pracujú v teplotnom rozsahu –40° až +70 °C. Aj pre aplikácie kde sú požadované parametre podľa EN 50155.
Operation
- High efficiency
- Operating temperature range-25to +55°C, no derating.
+70°C with derating - Fully encapsulated IP30.
- Convection cooled.
- Inhibit input
- Pin compatible unit with AC-input,see PSC-AC data
Features
- Conformally coated
- Under voltage alarm with open collector.
- Accessible from frontpanel:
- Output voltage adjustment
- Output voltage measurement
- OutputOK status green LED
EMC
- EN61000-6-3 Emission
- EN61000-6-2 Immunity
- EN/IEC61000-4-4, 4kV.
- EN/IEC61000-4-5level 2 & 3.
Nominal input |
Input voltage range |
Code |
|
12, 24 Vd.c. |
10 - 30V |
A |
|
24, 28, 36, 48 Vd.c. |
20 - 60V |
B |
|
48, 60, 72 Vd.c. |
40 - 100 V |
CT |
|
72, 96, 110, 127 Vd.c. |
50- 150 V |
C |
|
110, 127, 220, 250Vd.c. |
90 - 270 V |
D |
Master output |
Second ary outputs |
Total power |
|
5V 15 - 25A |
±12V 1.2A |
100 - 150W |
|
5V 15 - 25A |
12V 1.2A |
100 - 150W |
|
5V 15 - 25A |
±15V 1.2A |
100 - 150W |
|
5V 15 - 25A |
15V 1.2A |
100 - 150W |
|
12V 7.3 - 11A |
5V 2.5A2 |
100 - 150W |
|
12V 7 - 11A |
12V 1.2A |
100 - 150W |
|
15V 5 - 8A |
15V 1.2A |
100 - 150W |
|
24V 3 - 4.3A |
24V 1.2A |
100 - 150W |
2 Common zero on output
Two outputs with output rating and type code
Master Output |
Slave Output |
Total Power |
Input range |
|||||
10 - 30V |
20 - 60V |
40 - 100V |
50 - 150V |
90 - 270V |
Case |
|||
|
5V 17A |
12V 1.2A |
100W |
PSC100A5S12 |
PSC100B5S12 |
PSC100CT5S12 |
PSC100C5S12 |
PSC100D5S12 |
10TE |
|
5V 25A |
12V 1.2A |
150W |
PSC150A5S12 |
PSC150B5S12 |
PSC150CT5S12 |
PSC150C5S12 |
PSC150D5S12 |
12TE |
|
5V 17A |
15V 1.2A |
100W |
PSC100A5S15 |
PSC100B5S15 |
PSC100CT5S15 |
PSC100C5S15 |
PSC100D5S15 |
10TE |
|
5V 25A |
15V 1.2A |
150W |
PSC150A5S15 |
PSC150B5S15 |
PSC150CT5S15 |
PSC150C5S15 |
PSC150D5S15 |
12TE |
|
12V 7.3A |
5V 2.5A2 |
100W |
PSC100A12S5 |
PSC100B12S5 |
PSC100CT12S5 |
PSC100C12S5 |
PSC100D12S5 |
10TE |
|
12V 11A |
5V 2.5A2 |
150W |
PSC150A12S5 |
PSC150B12S5 |
PSC150CT12S5 |
PSC150C12S5 |
PSC150D12S5 |
12TE |
|
12V 7A |
12V 1.2A |
100W |
PSC100A12S12 |
PSC100B12S12 |
PSC100CT12S12 |
PSC100C12S12 |
PSC100D12S12 |
10TE |
|
12V 11A |
12V 1.2A |
150W |
PSC150A12S12 |
PSC150B12S12 |
PSC150CT12S12 |
PSC150C12S12 |
PSC150D12S12 |
12TE |
|
15V 5.5A |
12V 1.2A |
100W |
PSC100A15S15 |
PSC100B15S15 |
PSC100CT15S15 |
PSC100C15S15 |
PSC100D15S15 |
10TE |
|
15V 9A |
15V 1.2A |
150W |
PSC150A15S15 |
PSC150B15S15 |
PSC150CT15S15 |
PSC150C15S15 |
PSC150D15S15 |
12TE |
|
24V 3A |
24V 1.2A |
100W |
PSC100A24S24 |
PSC100B24S24 |
PSC100CT24S24 |
PSC100C24S24 |
PSC100D24S24 |
10TE |
|
24V 5A |
24V 1.2A |
150W |
PSC150A24S24 |
PSC150B24S24 |
PSC150CT24S24 |
PSC150C24S24 |
PSC150D24S24 |
12TE |
2 Common zero on the output.
Operating temperature range-25 till +55°C. +70°C with derating on PSC100 to 75 W & PSC150 to 110W. The slave outputs are only fa
