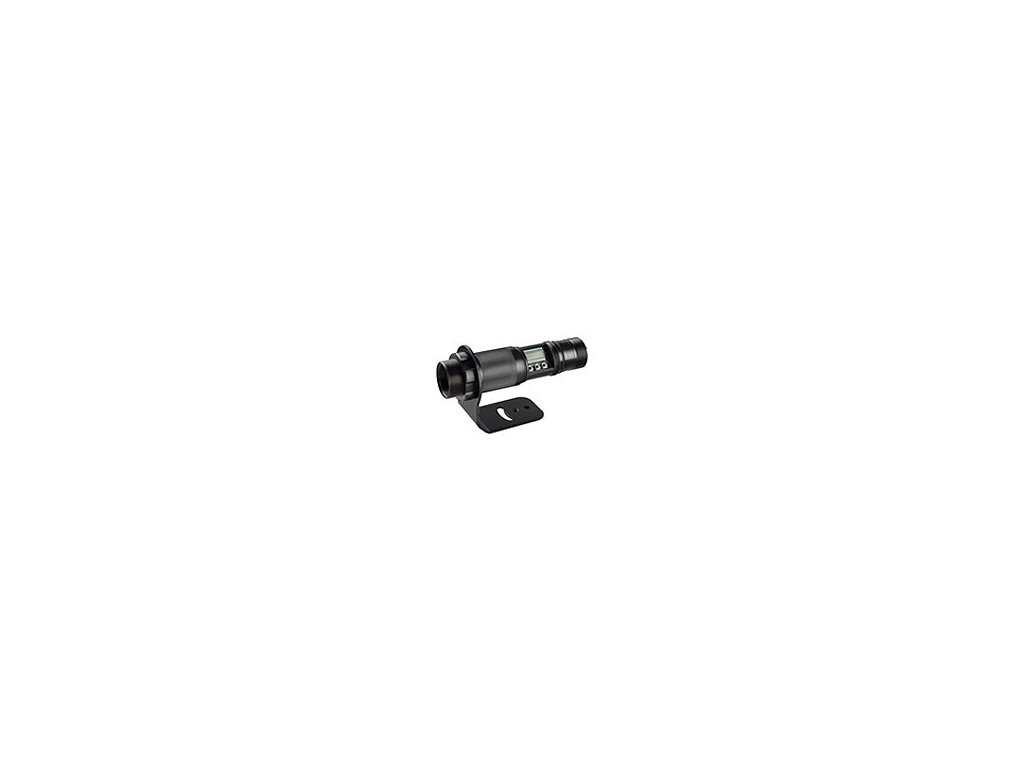

Raytek XR - Viacrozsahový do 1650°C

Značka: Fluke
  • Multiple temperature ranges
  • Optional stainless steel housing
  • Optional laser sighting and high resolution optics
  • Flexible user defined analog output
  • Simultaneous analog and digital outputs
  • Choice of field wiring or quick connector wiring option
Dostupnosť Opýtajte sa
Možnosti doručenia
Kód: 2029
€1 €0,83 bez DPH
Raytek XR - Viacrozsahový do 1650°C
Značka: Fluke
Raytek XR - Viacrozsahový do 1650°C
Ukončená výroba
Doprava zadarmo pre každý nákup nad 80€ s DPH vytvorený cez náš eshop s doručením na Slovensko.
Doprava zadarmo
pre každý nákup nad 80€ s DPH vytvorený cez náš eshop s doručením na Slovensko.
Široké možnosti platby na dobierku, kartou online alebo bankovým prevodom.
Široké možnosti
platby a doručenia pre vaše pohodlie. Prijímame platobné karty, Google Pay alebo Apple Pay.
Tovar skladom odosielame v deň objednávky (do 13:00)
Tovar skladom
odosielame v deň objednávky kuriérom SPS alebo službou Packeta (objednávky do 13:00).
Záručný, pozáručný servis teplomerov, multimetrov a iného metrologického vybavenia.
Servis a kalibrácia
teplomerov, multimetrov a iného metrologického vybavenia vrátane záručného a pozáručného servisu.

Product Description

The Raytek XR Sensors are designed for continuous temperature monitoring in a broad range of manufacturing processes. The XR is a rugged, NEMA 4 sealed single-piece system with the flexibility to handle nearly any application. Multiple extended temperature ranges, precision temperature resolution, RS-485 output and a flexible electronic platform create a single sensor that solves the most challenging application. Optional laser sighting and high-resolution optics provides the solution for either small targets or long sight-tubes. An intuitive user interface reduces setup time and adds powerful trouble-shooting capabilities.

Common and configurable installation hardware and software reduces installation expense and variation. The Raytek XR has a flexible user defined analog output, allowing this sensor to be installed with almost any existing control system. This unique capability sets a new standard for process monitoring. The Raytek XR sensor insures a consistent manufacturing process and allows tighter tolerances on heating processes, reducing heating costs.



Model
Temperature
Range
Spectral Response
Optical Resolution
LT (Low Temp)
-40°C to 600°C
(-40°F to 1112°F)
8 - 14 µm
33:1
LTHSF (Low Temp)
-40°C to 600°C
(-40°F to 1112°F)
8 to 14 μm
50:1
MT (Medium Temp)
250°C to 1200°C
(482°F to 2190°F)
3.9 µm
30:1
G5 (Glass)
250°C to 1650°C
(482°F to 3002°F)
5.0 µm
33:1
P7 (Plastics)
10°C to 360 °C
(50°F to 680 °F)
7.9 µm
30:1
