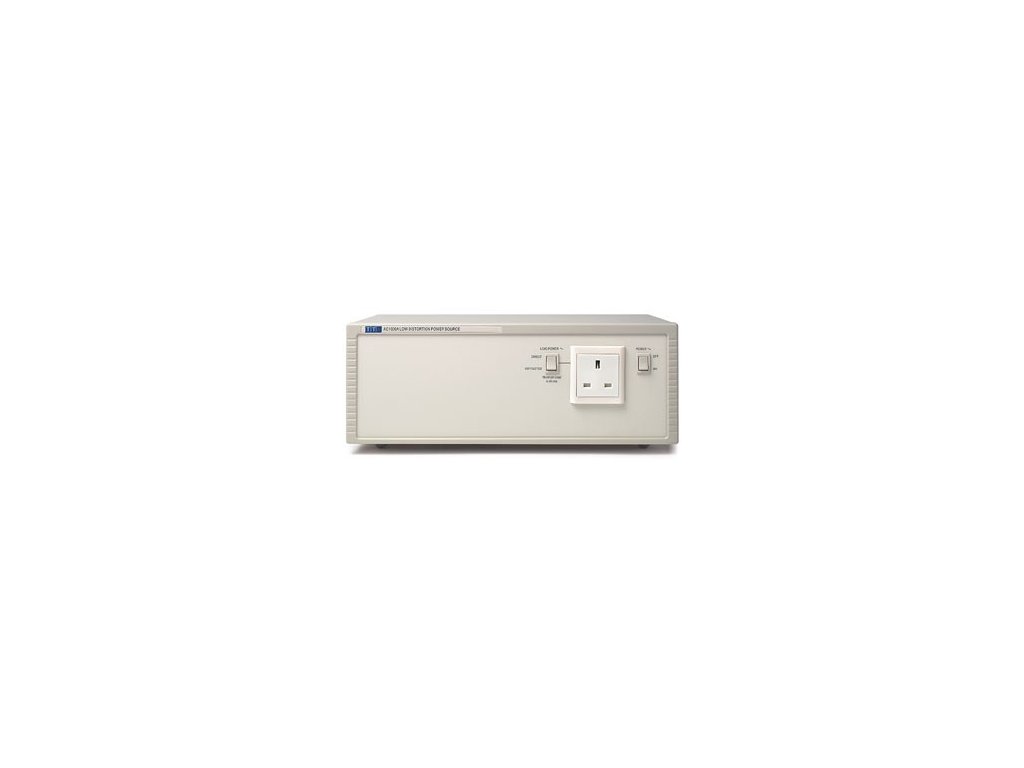

AC1000A - Low Distortion 1kW Power Source
Provides an EN61000–3–2 compliant source
1000W power capability at 230V
Up to 4·4A rms load current and up to
10A peak currents
Comprehensive overload protection
Connection via standard power connectors
Overview The AC1000A is an innovative, low cost, pure power source designed specifically for use with a harmonics analyser such as the TTi HA1600, permitting compliance quality measurements to EN61000–3–2. EMC legislation (EN61000–3–2) has made mandatory the measurement of harmonic current produced by electronic equipment, and requires that the source supply provides a pure voltage waveform to the equipment under test. The harmonic currents can differ significantly when a pure source is used so it is important that any testing is performed with a device such as the AC1000A. Compact and portable the AC 1000 is rated up to 1000 V·A for 230 V operation and will supply 1000 V·A at 230 V input at up to 35°C ambient. In contrast to other techniques which use a passive filtering approach, the AC1000A uses an innovative technique which actively corrects the AC supply to produce a harmonically pure output. |
The AC1000A is also very useful for stress testing power supplies in electronic equipment. The use of a harmonically pure, distortion free device – such as the AC1000A – is essential to fully stress and evaluate the power supply under test. EMC legislation (EN61000–3–2) has made mandatory the measurement of harmonic current produced by electronic equipment, and requires that the source supply provides a pure voltage waveform to the equipment under test. The harmonic currents can differ significantly when a pure source is used so it is important that any testing is performed with a device such as the AC1000A. |
Input Voltage: | Factory set to 230V, 115V or 100V; 50Hz or 60Hz. Installation Category II. |
Supply Tolerances: | 230V setting : 198V – 253V, 115V setting: 99V – 127V, 100V setting: 90V – 110V. 50Hz setting: ± 0·5Hz, 60Hz setting: ± 0·6Hz |
Output Voltage: | Tracks the amplitude of the fundamental of the input voltage. A variable voltage input may be used to adjust the output voltage to within the limits specified by EN61000–3–2. |
Output Distortion: | Dependent on the purity of the input but will generally meet the requirements of EN61000–3–2. |
Output Current: | Maximum continuous output current is 4·4A. |
Output Power: | Maximum output power is input voltage x 4·4 VA |
Input Connection: | IEC connector; front panel switch. |
Output Connection: | U.K., Schuko, or other national outlet sockets. Load power switch can be set to DIRECT or CORRECTED for ‘A–B’ comparisons. |
Protection: | Thermal trip automatically diverts load to a DIRECT connection in the event of thermal overload. |
Operating Range: | +5°C to +35°C at full rated output; 20% to 80% RH (non-condensing). |
Storage Range: | –40°C to +70°C |
Environmental: | Indoor use at altitudes to 2000m, Pollution Degree 2. |
Safety: | Complies with EN61010–1 |
EMC: | Complies with EN50081-1 and EN50082-1. |
Size: | 357 x 132 x 235mm (W x H x D) |
Weight: | 5.1 kg. |
