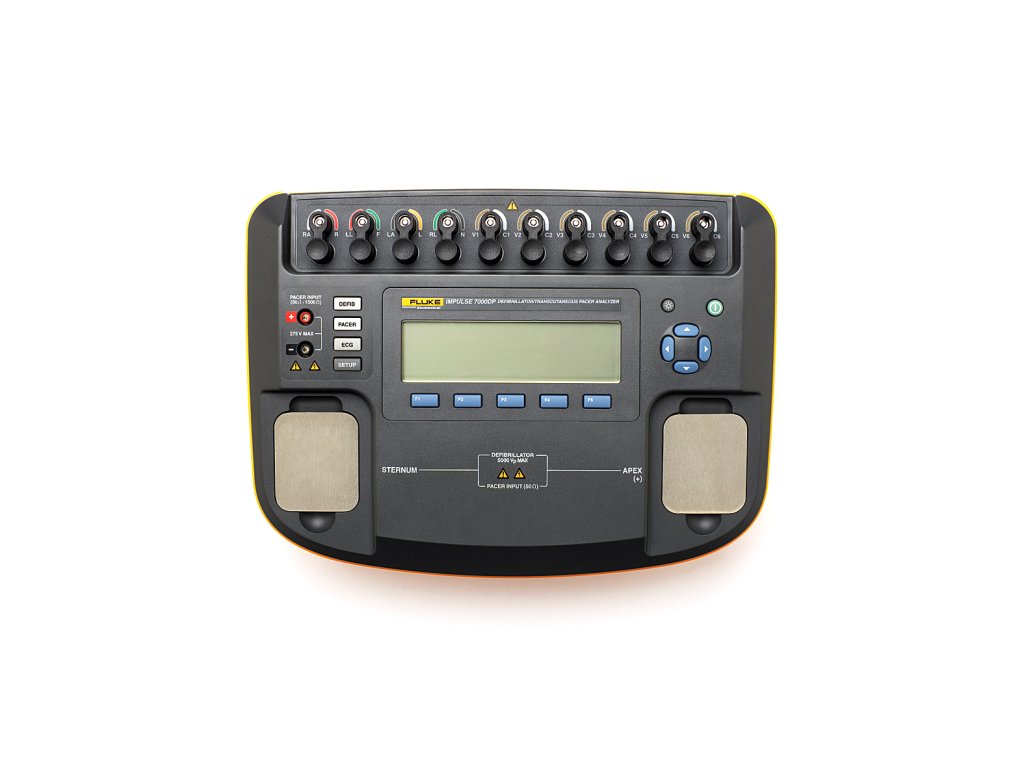

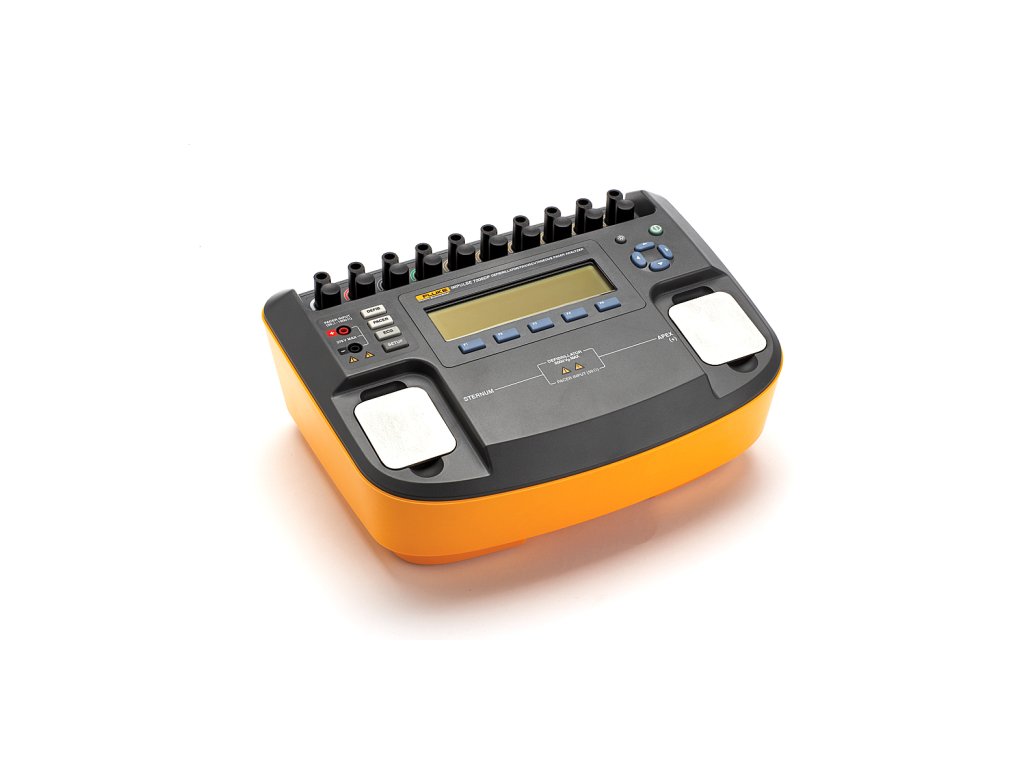

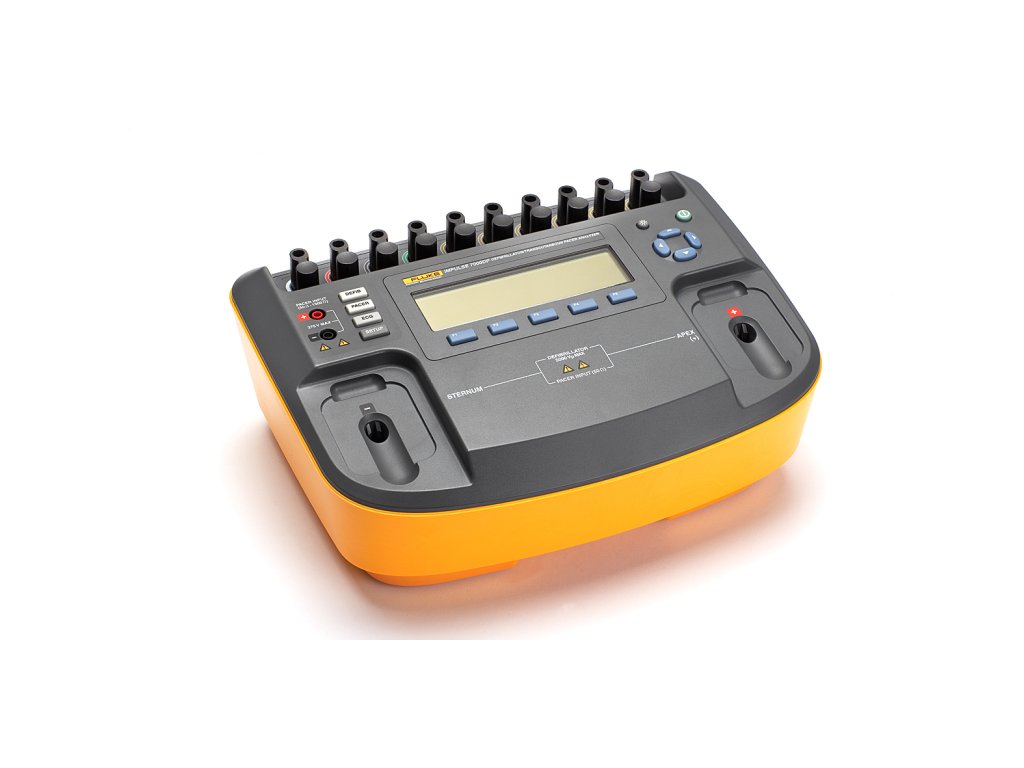

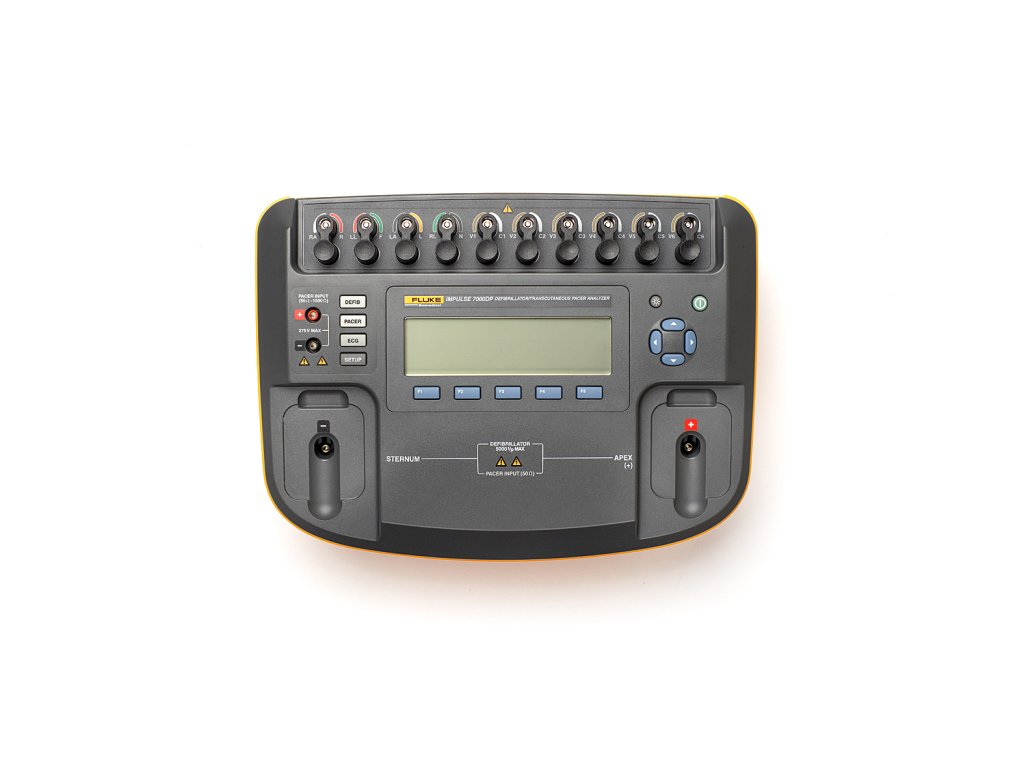

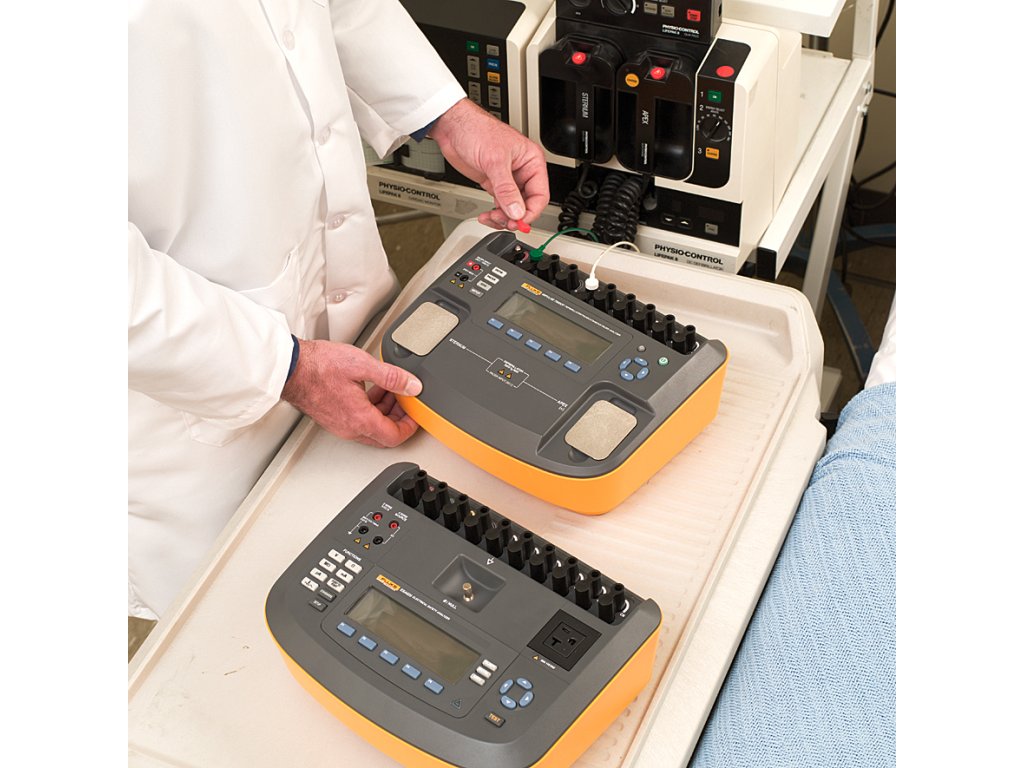

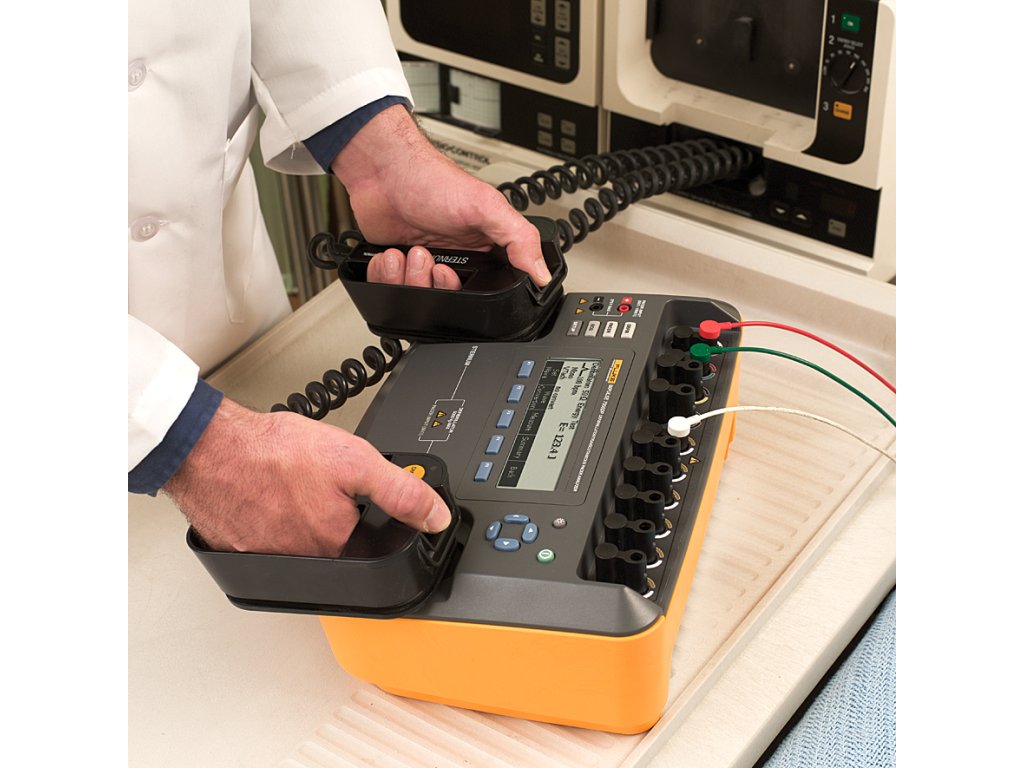

Fluke Bm. Impulse 6000D - Tester defibrilátorov

Impulse 6000D - prístroj zahŕňa spektrum defibrilátorových impulzov vrátane Lown, Edmark, monophasic trapezoidal(lichobežníkový monofonický záznam), DC bifázický a impulzný AC bifázický. Je vybavený full-range AED testerom, kompatibilnou simulačnou technológiou. Môžete ním testovať prístroje monofázické, bifázické a impulzne bifázické, pričom jeho presnosť merania dosahuje 1%.

Tento ergonomický testovací systém je odolný, ľahko sa prenáša, má LCD displej s funkčnými tlačidlami a zabudované dobíjacie, vysokokapacitné batérie. Môže testovať externé kardiostimulátory, ktoré využívajú priamo predefinované typy a značky. Má tiež široký rozsah zaťažovacích odporov od 50 Ω. Jeho veľkou prednosťou je, že podporuje všetky konštrukcie defibrilátorov, ktoré sa v sučastnej dobe využívajú. Prístroje je zabezpečený príslušenstvom pre bezpečné EKG pripojenia. Jednotlivé 12 - zvodové EKG simulačné schopnosti s nezávislými výstupmi, pomáhajú pri vykonávaní práce ako testovanie defibrilátorov a okrem merania energie impulzu a jeho časovania je prístroj schopný generovať fiziologické EKG priebehy s voľbou rýchlosti srdcovej frekvencie a testovať tak monitory životných funkcií.

Prístroj využíva riadiace algoritmy s využitím technológie DSP- (Digital Signal Process). Štandardné USB rozhranie umožňuje ovládanie počítača a prenos dát; softvér Ansur zvyšuje produktivitu užívateľov vybavovať sa ľahko ovládateľnými metódami pri testovacích postupoch, ľahké zachytenie priebehov, výsledky testov, tlač dokumentov a dát pre zýšenú kvalitu v biomedicínskom priemysle.

• Monofázické, bifázické a impulzné-bifázické meranie energie
• Prvotriedna presnosť merania
• Ľahko použiteľné menu
• Interné duálne použitie (defib a Pacer) bezindukčný (2 µH) 50 Ω testload
• Izolovaný výstup pre lepšie meranie a nižšiu EKG simuláciu
• Domáce aj zahraničné certifikáty: CE, CSA, a C-tick (Australia)
• Ochrana proti náhodnému vstupu Pacer pri použití defibrilátora výstupu
• Interné vysokokapacitné NiMH batérie
• Výstupná energia, doba nabíjania a synchronizácia defibrilačných testov
• Napätie špičky a prúdové čítanie
• Úplné poskytnutie monofázického a bifázického defibrilátora, vlnová krivka, časovanie parametrov
• Prehrávanie krivky výstupného defibrilátora
• 10 izolovaných EKG elektród -  poskytujú 12 kombinácií štandardizovaných klinických signálov
• 2 ročná záruka od výrobcu
• Softvér Ansur pomáha štandardizovať a dokumentovať testovacie postupy a výsledky
• Navrhnutý, testovaný a postavený tak, aby sa zachovala kvalita a štandardnosť Fluke

Impulse 6000D Defibrillator Analyzer and Impulse 7000DP Defibrillator-Transcutaneous Pacer Analyzer

General Specifications General Specifications Temperature, operating 10 °C to 40 °C (50 °F to 104 °F) Temperature, storage -20 °C to +60 °C (-4 °F to +140 °F) Humidity 10 % to 90 % non-condensing Display LCD display Communications USB device port for computer control Power Internal rechargeable NiMH battery pack for nine hours (typical) operation after full charge or the battery charger can simultaneously operate the Analyzer and charge the battery Mechanical Housing:ABS Plastic Height:13 cm (5 in) Width:32 cm (13in) Depth:24 cm (9.5 in) Weights (w/ batteries):3.02 kg (6.6 lbs 0.1 oz) Defibrillator Analyzer Specifications Compatible Defibrillator Waveshapes   Lown, Edmark, Trapezoidal, DC Bi-phasic, and AC Pulsed Bi-phasic   AC Pulsed Biphasic waveform has not been approved in the United States. Autoranged Measurement   0.1 J to 600 J Accuracy 0.1 J to 360 J ±(1 % of reading + 0.1 J) 360 J to 600 J ±(1 % of reading + 0.1 J), typical   Note: For Pulsed Bi-Phasic defibrillator, specified accuracy is ±(1.5 % of reading + 0.3 J) on both ranges. Load resistance Resistance 50 Ω Accuracy ±1 %, non-inductive ( <2 ׀H) Pulse trigger level   20 V Pulse width Range 1 ms to 50 ms Accuracy ±0.1 ms Voltage Range 20 V to 5000 V Accuracy ±(1 % of reading + 2 V) Current Range 0.4 A to 100 A Accuracy ±(1 % of reading + 0.1 A) Sample rate   250 kHz (4 µs sample) Maximum Average Power   12 W, equivalent to 10 defib pulses of 360 J every 5 minutes Scope Output Autorange 2000:1, 400:1 and 80:1: dependant on the range Waveform Playback Output: BNC   Output impedance: 50 Ω   Amplitude Accuracy: ±5 % Charge Time Measurement Range 0.1 s to 100 s Accuracy ±0.05 s, typical Synchronization Test (Elective Cardioversion) Delay Time Measurement Timing window: : ECG R-wave peak to the defib pulse peak   Range: -120 to +380 ms; measures timing from 120 ms prior to the R-wave peak to up to 380 ms following the R-wave peak   Resolution: 1 ms   Accuracy: ±1 ms ECG waves Normal Sinus Rhythm (NSR): 10 BPM to 180 BPM, in 1 BPM steps   Atrial fibrillation: Coarse and fine   Monomorphic Ventricular Tachycardia: 120 BPM to 240 BPM, in 5 BPM steps   Asystole: Flat line Automated Defibrillator Test ECG Waves Normal Sinus 10 BPM to 300 BPM, in 1 BPM steps Ventricular Fibrillation Coarse and fine Monomorphic Ventricular Tachycardia 120 BPM to 300 BPM, in 5 BPM steps Polymorphic Ventricular Tachycardia 5 types Asystole Flat line ECG Waves ECG General Lead configuration 12-lead simulation. RA, LL, LA, RL, V1-6 with independent signal outputs Lead-to-lead impedance 1000 Ω (nominal) Rate accuracy ± 1 % of setting ECG Amplitudes Reference lead Selectable, Lead II (default) or Lead 1 Settings 0.05 mV to 0.45 mV, in 0.05 mV steps hard return 0.5 mV to 5.0 mV, in 0.5 mV steps Accuracy (All Performance waves and Normal Sinus R waves) Lead II: ± 2 % All other leads: ± 7 % Defib paddles: ± 7 % Amplitude of ECG signals relative to amplitude setting (in percent) Lead II reference:   Performance waves and R wave detection   Lead I – 70 %   Lead II – 100 %   Lead III – 30 %   Lead V1 – 100%   Lead V2 – 100%   Lead V3 – 100 %   Lead V4 – 100 %   Lead V5 – 100 %   Lead V6 – 100 %   Normal Sinus waves   Lead I – 70 %   Lead II – 100 %   Lead III – 30 %   Lead V1 – 24%   Lead V2 – 48%   Lead V3 – 100 %   Lead V4 – 120 %   Lead V5 – 112 %   Lead V6 – 80 %   Lead I reference:   Performance waves and R wave detection   Lead I – 100 %   Lead II – 150 %   Lead III – 50 %   Lead V1 – 100%   Lead V2 – 100%   Lead V3 – 100 %   Lead V4 – 100 %   Lead V5 – 100 %   Lead V6 – 100 %   Normal Sinus waves   Lead I – 100 %   Lead II – 150 %   Lead III – 50 %   Lead V1 – 24%   Lead V2 – 48%   Lead V3 – 100 %   Lead V4 – 120 %   Lead V5 – 112 %   Lead V6 – 80 % ECG Normal sinus Rates 10 BPM to 360 BPM, in 1 BPM steps ECG High level output (BNC Jack) Amplitude Range 0.5 V/mV of reference lead setting Accuracy ± 5 % Output Impedance: 50 Ω ECG on defibrillator Input Load Lead II reference 40 % of amplitude setting Lead I reference 60 % of amplitude setting ECG Performance Waves Square wave 2 Hz and 0.125 Hz Triangular wave 2 Hz and 2.5 Hz Sine waves 0.05, 0.5, 5, 10, 40, 50, 60, 100, 150, and 200 Hz Pulse 30BPM and 60 BPM, 60 ms pulse width R-Wave detection Waveform Haver-triangle Rates 30, 60, 80, 120, 200 and 250 BPM Widths 8, 10, 12 and 20 to 200 (by 10) ms Amplitudes 0.05 mV to 0.45 mV 0.05 mV hard return   0.5 mV to 5 mV, in 0.5 mV steps Accuracy ± (1 % setting + 1 ms) Noise Immunity Wave Sine Line Frequency 50 Hz or 60 Hz ( ± 0.5 Hz) Amplitude Range: 0.0 mV to 10 mV, in 0.5 mV steps   Accuracy: ± 5 % Transvenous Pacer Pulse Simulation Widths Range: 0.1, 0.2, 0.5, 1, and 2 ms.   Accuracy: ± 5 % of setting Amplitudes Range: 0 (off) and ± 2, ± 4, ±6, ±8, ±10, ±12. ±14, ±16, ±18, ±20, ±50, ±100, ±200, ±500, ±700 mV   Accuracy: ± (10 % setting + 0.2 mV) Amplitude of Transvenous Pacer Pulse Simulation signals relative to amplitude setting (in percent) Lead II reference:   Lead I – 67 %   Lead II – 100 %   Lead III – 33 %   Lead V1 – 67%   Lead V2 – 67%   Lead V3 – 67 %   Lead V4 – 67 %   Lead V5 – 67 %   Lead V6 – 67 %   Lead I reference:   Lead I – 100 %   Lead II – 150 %   Lead III – 50 %   Lead V1 – 100%   Lead V2 – 100%   Lead V3 – 100 %   Lead V4 – 100 %   Lead V5 – 100 %   Lead V6 – 100 % Arrhythmia selections Pacer Interactive (Transcutaneous Pacer, Impulse 7000DP only) Demand: 30 BPM to 360 BPM, in 1 BPM steps Asynchronous Non-Capture Non-Function Threshold (interactive pacing simulation only): 10 mA to 250 mA in 10 mA steps Supraventricular Atrial Fibrillation Coarse Atrial Fibrillation Fine Atrial Flutter Sinus Arrhythmia Missed Beat Atrial Tachycardia Paroxysmal Atrial Tachycardia Nodal Rhythm Supraventricular Tachycardia Premature Atrial PAC Nodal PNC PVC1 Left Ventricle (LV) PVC1 Left Ventricle (LV) Early PVC1 Left Ventricle (LV) R on T PVC2 Right Ventricle (RV) PVC2 Right Ventricle (RV) Early PVC2 Right Ventricle (RV) R on T Multifocal PVCs (LV and RV) Ventricular PVCs 6/min PVCs 12/min PVCs 24/min Freq Multifocal Trigeminy Bigeminy Pair PVCs Run 5 PVCs Run 11 PVCs Monomorphic VTach: 120 to 300 (5 BPM steps) Polymorphic VTach: 5 selections Ventricular Fibrillation: Coarse and Fine Asystole Conduction 1° Block 2° Block Type I 2° Block Type II 3° Block Right Bundle Branch Block (RBBB) Left Bundle Branch Block (LBBB) Transvenous Pacemaker (ECG simulation only) Atrial 80 BPM Asynchronous 75 BPM Demand with frequent sinus beats Demand with occasional sinus beats AV Sequential Non-Capture Non-Function Selectable pacer pulse parameters for transvenous simulation (Atrial & Ventricular channels are independently selectable by the user) Atrial Pacer Pulse (Note: relates only to the TV pacer) Width: 0.1, 0.2, 0.5, 1, 2 ms Polarity: + or - Amplitude: 0 (off), 2 to 20 (by 2), 50, 100, 200, 500, 700 mV Ventricular Pacer Pulse (Note: relates only to the TV pacer) Width: 0.1, 0.2, 0.5, 1, 2 ms Polarity: + or - Amplitude: 0 (off), 2 to 20 (by 2), 50, 100, 200, 500, 700 mV (BNC Jack) Accuracy ± 5 % for 2 Hz Square Wave , 50 _ output impedance Transcutaneous Pacemaker Analyzer Specifications (Impulse 7000DP only) Test Load Selections Defibrillator Testload (Internal) Fixed load: 50 Ω ±1 %, non-inductive ( <2 μH) Power rating: 10 defib pulses of 360 Joules every 5 minutes Pacemaker Testloads (Internal) Variable load: 50 to 1500 Ω in 50-Ωsteps (±1 %), non-inductive ( < 2uH) Power rating: 5 W (average), 40 W (peak) @ 1000 Ω Pacemaker Measurements Manufacturer specific algorithms GE Responder (1500 & 1700) MDE 300 (Medical Data Electronics) Medtronic ERS/Physio Control LIFEPAK MRL (Medical Research Laboratory/Welch Allyn) Philips/Agilent HP Schiller Medical ZOLL Medical (plus a general purpose Default Algorithm selection) Current 4 to 250 mA, ± (1% of reading + 0.02 mA) Pulse rate 5 to 800 PPM, ± (0.5% of reading + 0.1 PPM) Pulse width 1 to 100 ms, ± (0.5% of reading + 0.01 ms) Energy 1 μJ to 2 J, ± (4% of reading + 10 μJ) Demand and Asynchronous Mode Test Input pacer pulse rates 30 to 200 PPM ECG NSR wave Rate:10 to 300 BPM in 1 BPM increments. Amplitude:1 mV Underdrive rate:10 BPM minimum Overdrive rate:300 BPM maximum Sensitivity Test Automatic interactive threshold detection Compatible pacer rates: 30 to 120 PPM. ECG R Wave Waveforms:Square, Triangle, Sine Width:1 to 19 (by 1) ms. 20 to 95 (by 5) ms. 100 to 300 (by 25) ms Amplitude:0.05 to 0.95 (by 0.05) mV. 1 to 5 (by 0.5) mV Accuracy:± 5% of setting Refractory Period Tests Paced Refractory Period 20 to 500 ms Sensed Refractory Period 15 to 500 ms Accuracy ± 1 ms Pacer pulse rate 20 to 200 PPM ECG Waveform:Triangle wave Pulse Width:40 ms Amplitude:1 mV
