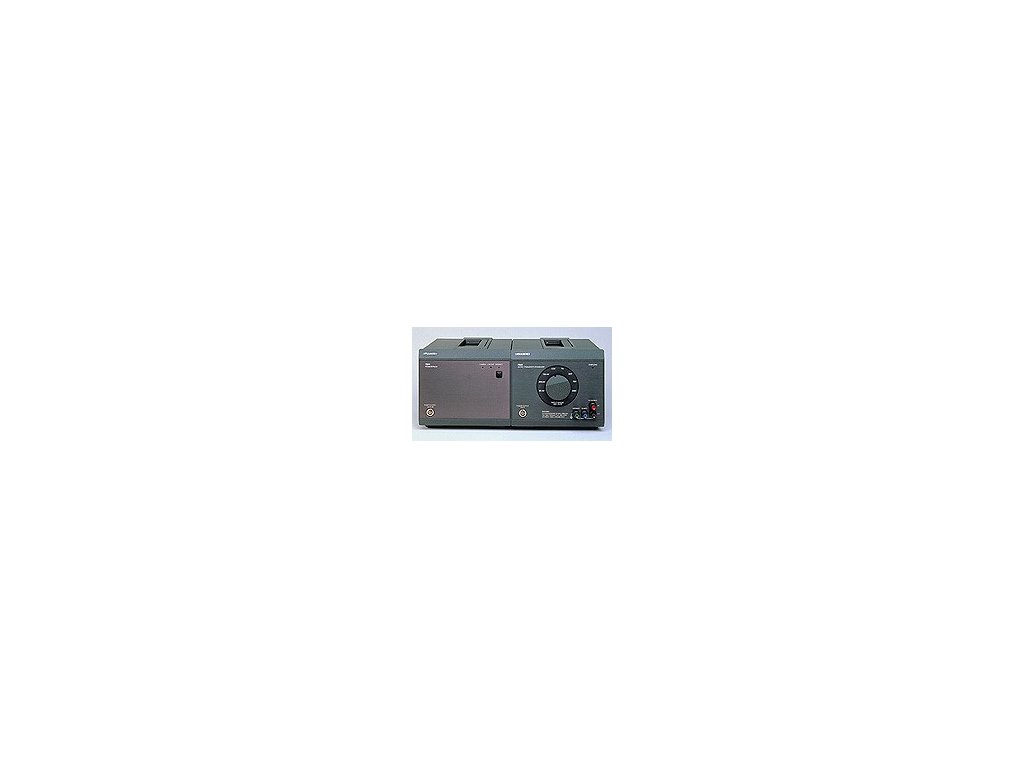

Fluke Calibration 792A - AC/DC Prenosný normál

Support for your mostdemanding ac traceability requirements

The Fluke 792A is an ultra-high accuracy AC/DC Thermal Transfer Standard, designed to meet the most demanding ac traceability requirements. Using the patented Fluke RMS sensor and thin film range resistors, the 792A offers an extraordinary transfer accuracy, with total uncertainties of as low as ±10 ppm (±5 ppm from the National Institute of Standards and Technology ¾ NIST). The 792A also provides a wide voltage range of 2 mV to 1000V, and a wide frequency range of 10 Hz to 1 MHz.

Dostupnosť Opýtajte sa
Možnosti doručenia
Kód: 871947
€120 €100 bez DPH
Fluke Calibration 792A - AC/DC Prenosný normál
Fluke Calibration 792A - AC/DC Prenosný normál
Cena na požiadanie
Doprava zadarmo pre každý nákup nad 80€ s DPH vytvorený cez náš eshop s doručením na Slovensko.
Doprava zadarmo
pre každý nákup nad 80€ s DPH vytvorený cez náš eshop s doručením na Slovensko.
Široké možnosti platby na dobierku, kartou online alebo bankovým prevodom.
Široké možnosti
platby a doručenia pre vaše pohodlie. Prijímame platobné karty, Google Pay alebo Apple Pay.
Tovar skladom odosielame v deň objednávky (do 13:00)
Tovar skladom
odosielame v deň objednávky kuriérom SPS alebo službou Packeta (objednávky do 13:00).
Záručný, pozáručný servis teplomerov, multimetrov a iného metrologického vybavenia.
Servis a kalibrácia
teplomerov, multimetrov a iného metrologického vybavenia vrátane záručného a pozáručného servisu.

Tento výrobok sa už nedodáva, náhrada je Fluke 5790B - merací normál striedavého signálu.

The Fluke solid-state RMS sensor also provides the 792A with remarkable temperature stability and fast settling time. Now you can be ready to make measurements in 30 seconds instead of 30 minutes. To simplify the transfer process, the 792A"s 2V output permits you to use a high-resolution digital multimeter rather than a null meter.

The Fluke 792A is designed to support the calibration of the most accurate ac instruments in your standards lab workload, including calibrators like the Fluke 5700A/5720A, voltmeters like the Fluke 8506A or the HP 3458A, and ac measurement standards like the Fluke 5790A.

The 792A consists of four units. The Transfer Unit is the main analog component of the 792A for the 20 mV to 220V ranges. Stainless Steel Type-N connectors assure low signal loss and high measurement repeatability. The separate Power Pack unit permits the Transfer Unit and 1000V Range Resistor to be shipped independently for calibration. The 1000V Range Resistor isolates the heat generated at high voltages outside the main Transfer Unit. The Range Resistor has a low temperature coefficient, stabilizes quickly and exhibits small ac/dc differences. The Transfer Switch provides for switching between the ac and dc inputs.

Each 792A is shipped from the factory traceable to national standards. Each 792A also includes a table of correction factors and uncertainties for measured ac/dc differences.

Fluke A40 and A40A support ac current transfer measurements. An optional 792A-7004 Adapter is required.

  • Accurate, fast and easy to use
  • Fully traceable performance
  • Nine ranges from 22 mV to 1000V (with external range resistor)
  • Visual and audible alert warns of approaching overload condition
  • Input connector located on rear panel
  • Two volt (full scale) output permits the use of a high resolution digital multimeter to simplify transfer measurements
  • External power supply makes bench use more convenient and simplifies shipping of the transfer unit for calibration

Accurate, fast and easy to use

At the heart of the Fluke 792A is the patented Solid-State Thermal RMS sensor, which has been proven in a variety of Fluke products since 1979. Its output voltage is 2V, compared to the 7 to 10 mV output of traditional thermocouples. That means the 792A exhibits excellent signal-to-noise characteristics and minimal reversal errors as low as 10 ppm relative to input voltage. The 2V output also permits you to make measurements with high resolution so you can use a digital voltmeter rather than a null meter to make transfers. Not only are measurements easier to make, they are more precise as well. And because it is small, the RMS Sensor has very low thermal mass, so the 792A stabilizes in as little as 30 seconds and can be used over a wide temperature range of 11° C to 35° C. The RMS Sensor is designed to be rugged and reliable. Each is built to exacting standards by the Fluke Microelectronics Operation to maintain quality and consistency, part after part.

Fully Traceable Performance

Each 792A is shipped from Fluke with a certificate of calibration accredited by DKD and NVLAP. Included is a table of correction factors and uncertainties for measured ac/dc differences.

To support the traceability requirements for an instrument as accurate as the 792A, the Fluke Metrology Department developed a unique system to transfer national laboratory values to the 792A production environment. This system is based on proven techniques developed to maintain a 732A direct voltage standard to within a few parts in 100 million. Statistical treatment of data resulting from successive intercomparisons of virtually identical 792As is used to minimize transfer uncertainties. To achieve even higher performance, you can have the transfer uncertainties of your 792A assigned directly by any national standards organization.

Periodic calibration and recertification is available from Fluke. This service repeats the original calibration procedure. A new table of correction factors and uncertainties for measured ac/dc differences is returned with your instrument. Order 792A-000.

Calibration Instruments   >   DC/LF Electrical Calibration   >   Standards   >
792A AC/DC Transfer Standard
General Specifications
AC-DC Difference
Range: 2 mV to 1000V
10 Hz to 1 MHz
Best 1 Year Specification: ± 10ppm
Temperature Stabilization
Allow 12 hours stabilization time in the environment of use
Warm up Time
15 minutes with power on, after stabilization time
Temperature Performance
Operating: 11°C to 35°C;
Calibration: 18°C to 28°C;
Storage: -40°C to 50°C
Relative Humidity
Operating: < 75% to 30°C, < 70% to 35°C;
Storage: < 95%, non-condensing
Operating: to 3,050 m (10,000 ft);
Non-operating: to 12,200 m (40,000 ft)
Designed to comply with UL 1244 (1987); IEC 348-1978; IEC 1010; CSA 556B and ANSI/ISA 582
Input Low Isolation
20V to chassis
Guard Isolation
10V to input LO or chassis
Designed to comply with FCC Rules Part 15, Subpart J, Class B; VDE 0871, Class B; VDE 0875, Class K
Line Power
MIL-STD-28800D, paragraph 3.13.3
Transfer Unit: 17.8 cm H x 21.6 cm W x 30.5 cm D (7 in H x 8.5 in W x 12 in D)
Power Pack: 17.8 cm H x 21.6 cm W x 30.5 cm D (7 in H x 8.5 in W x 12 in D)
1000V Range Resistor: 7.6 cm H x 8.9 cm W x 14.0 cm D (3 in H x 3.5 in W x 5.5 in D)
Transfer Switch: 7.6 cm H x 8.9 cm W x 14.0 cm D (3 in H x 3.5 in W x 5.5 in D)
Transfer Unit: 8.4 kg (18.5 lb)
Power Pack: 8.9 kg (19.5 lb)
1000V Range Resistor: 1.6 kg (3.5 lb)
Transfer Switch: 1.6 kg (3.5 lb)
