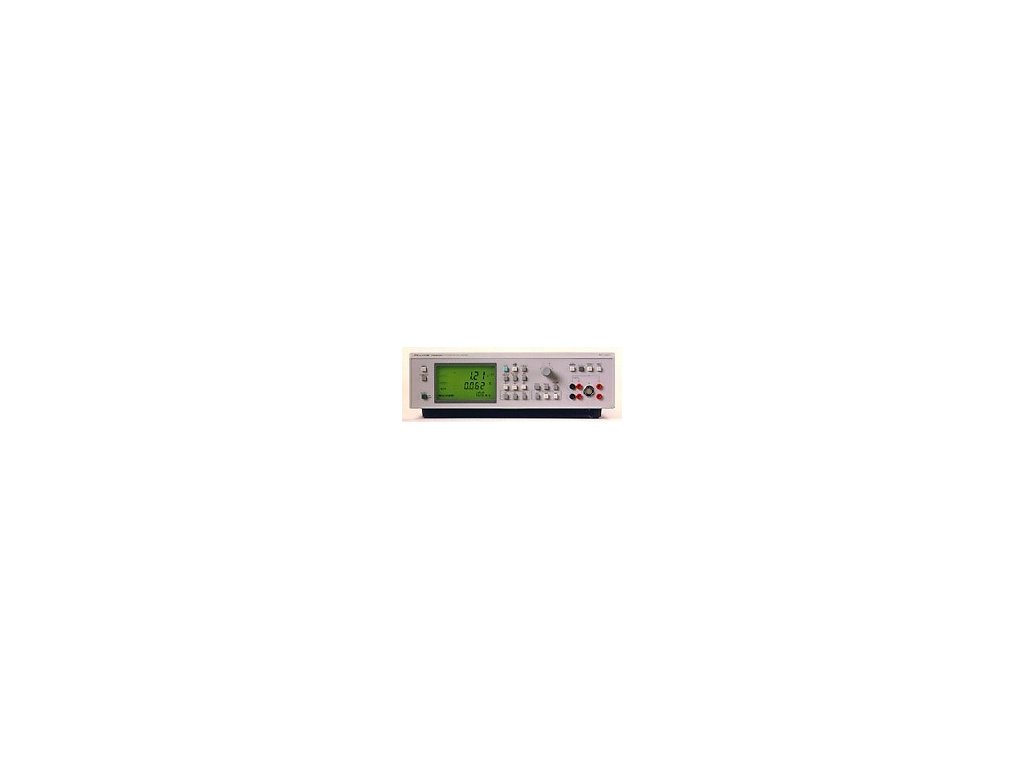

PM 6304 RCL Meters
Versatile component measurement and testing

If you want an instrument with remote programmability, consider the Fluke PM 6304 RCL meter. The PM 6304 has a basic accuracy of 0.1%, 3 test voltage levels and 204 test frequencies. The PM 6304C has an even higher basic accuracy, and can measure components or devices with an accuracy of 0.05%. Thanks to this high accuracy, the PM 6304C is idealy suited for calibrating the capacitance sourcing function of the high-performance Fluke 5500A Multi-Product Calibrator.

Dostupnosť Opýtajte sa
Kód: 1959
€1 €0,83 bez DPH
Fluke PM6304 - RCL Meter
Značka: Fluke
Fluke PM6304 - RCL Meter
Ukončená výroba
Doprava zadarmo pre každý nákup nad 80€ s DPH vytvorený cez náš eshop.
Doprava zadarmo
pre každý nákup nad 80€ s DPH vytvorený cez náš eshop.
Široké možnosti platby na dobierku, kartou online alebo bankovým prevodom.
Široké možnosti
platby a doručenia pre vaše pohodlie
Tovar skladom odosielame v deň objednávky (do 13:00)
Tovar skladom
odosielame v deň objednávky kuriérom SPS (do 13:00).
Záručný, pozáručný servis teplomerov, multimetrov a iného metrologického vybavenia.
Servis a kalibrácia
teplomerov, multimetrov a iného metrologického vybavenia.

PM 6304 Programmable RCL meter (DC-100 kHz)

AC Test Mode
Test frequency
PM 6306: 50, 60, 100, 120 Hz
  200 Hz to 100 kHz (100 Hz steps)
  100 kHz to 1 MHz (1 kHz steps)
PM 6304: 50, 60, 100, 120 Hz
  200 Hz to 20 kHz (100 Hz steps)
  100 kHz
Test frequency accuracy
PM 6306: 0.01%
PM 6304: 0.01%
Test signal levels
PM 6306: 50 mV to 2V (10 mV steps) via 100Ω
PM 6304: 50 mV via 100Ω
  1V via 100Ω
  2V via 400Ω
Basic measurement accuracy at normal measurement mode
PM 6306: 0.1% ± 1 digit (for ³ 0.25V, £ 50 kHz)
  0.1% * (f/50 kHz) ± 1 digit (for ³ 0.25V, > 50 kHz)
  0.1% * (0.25V/Vt) ± 1 digit (for < 0.25V, £ 50 kHz)
PM 6304: 0.05% ± 1 digit (for PM 6304C, £ 2 kHz)
  0.1% ± 1 digit (for £ 20 kHz)
  0.4% ± 1 digit (100 kHz)
  0.5% ± 1 digit (for 50 mV £ 20 kHz)
  2.0% ± 1 digit (for 50 mV, 100 kHz)
DC bias
Internal
PM 6306: 0 to 10V (0.1V steps)
PM 6304: 2V
External
PM 6306: 0 to 40V
PM 6304: 0 to 40V
DC test mode (Optional)
Test signal levels
PM 6306: 50 mV to 2V (10 mV steps) via 100Ω
PM 6304: 300 mV via 100Ω
  1V via 100Ω
  2V via 400Ω
Basic measurement accuracy
PM 6306: 0.1% ± 1 digit (for ³ 0.25V)
PM 6304: 0.1% ± 1 digit (for 1V)
Contact check (PM 6306 only)
Pass
  3 3Ω
Fail
  3Ω (with indication of failed connection lead)
Maximum measuring ranges
Impedance/Resistance AC Z or RAC
  0.0000Ω to 200 MΩ
Resistance DC R DC
  0.0000Ω to 50 MΩ
Capacitance C
  0.00 pF to 31.8F
Inductance L
  0.00 mH to 637 kH
Quality factor Q
  0.000 to 1000
Dissipation factor D
  0.000 to 1000
Phase Angle F
  -179 to + 180 deg
Voltage monitor VX
  0.1 mV to 2.00V
Current monitor IX
  0.005 mA to 10.0 mA
Maximum resolution
Impedance/Resistance AC Z or RAC
  0.1 mΩ
Resistance DC R DC
  0.1 mΩ
Capacitance C
  0.01 pF
Inductance L
  0.01 mH
Quality factor Q
  0.001
Dissipation factor D
  0.001
Phase Angle F
  0.1 deg
Voltage monitor VX
  0.1 mV
Current monitor IX
  0.001 mA
Circuit diagram
Display
  1 of 7 different equivalent circuit diagrams
Auto Mode
Read-out
  Dominant and secondary parameter
Equivalent circuit diagram
  Parallel for R+C, Serial for R+L
Manual mode
Read-out
  Dominant and secondary parameter or Z, F, D, Q, VX, IX
Equivalent circuit diagram
  Parallel or serial selectable
Average function
Function
  Exponential averaging in continuous mode
Levels
PM 6306: 3 (and off)
PM 6304: 1 (and off)
Deviation mode (PM 6306 only)
Relative range in respect to reference value
  -100% to +100%
Measuring modes (Normal)
Continuous
  2 measurements/s
Single
  Triggered via "TRIG" key
  Triggered via handler interface
  Triggered via IEEE-488 or RS-232
Test frequency
PM 6306: 50, 60, 100, 120 Hz
  200 Hz to 100 kHz (100 Hz steps)
  100 kHz to 1 MHz (1 kHz steps)
  DC (optional)
PM 6304: 50, 60, 100, 120 Hz
  200 Hz to 20 kHz (100 Hz steps)
  100 kHz
  DC (optional)
Read-out
  Display or via IEEE-488 or RS-232 interface
Measuring Modes (Fast)
Max. speed
  10 measurements/s
Test frequency
PM 6306: 200 Hz to 100 kHz (200 Hz steps)
  100 kHz to 1 MHz (1 kHz steps)
  DC (optional)
PM 6304: 200 Hz to 20 kHz (200 Hz steps) 100 kHz
  DC (optional)
Single
  Triggered via handler interface
  Triggered via IEEE-488 or RS-232
Read-out
  Via IEEE or RS-232 interface (display blanked)
Binning
Standard bins
  9
Special bins
  Bin "0" and bin "fail"
Bin programming via
  IEEE-488 interface
  RS-232 interface
  Bin programmer (PM 6304 only)
Bin limit programming
  Absolute or relative
Trim function
Open circuit
  Open circuit compensation Z > 100 kW
Short circuit
  Short circuit compensation Z < 10W
Protection against charged capacitors
C < 2 mF
PM 6306: Vmax < 200V
PM 6304: Vmax < 500V
2 mF o C o 2 mF
PM 6306: Vmax <47 x (C/mF) -0.234
  (Vmax in V, C in mF)
PM 6304: Vmax <117 x (C/mF) -0.234
  (Vmax in V, C in mF)
Stored settings (non-volatile memory)
Front panel settings
  9 + 1 (trim figures included)
Bin settings
  9 + 1
Print measurements results
Print measurements results
  Via RS-232 interface for serial printers
Calibration interval
Calibration interval
  1 year
Environmental Conditions
Operating Temperature
  0° to 50° C
Storage Temperature
  -40° C to 70° C
Power, battery life
  100/120/220/240V + 10%
Line frequency
  50/60 Hz
Power Consumption
PM 6306: 44 VA
PM 6304: 31 VA
Safety
  According to CE-regulation 73/23 EN61010-1 CAT II, Pollution Degree 2
EMC
  According to CE regulation 89/336: Emission according to EN 55011, Group 1 Class B, respectively CISPR 11. Immunity according to EN 50082-1, inclusive IEC 801-2, -3, -4
Warm up Time
PM 6306: 30 minutes
PM 6304: 5 minutes
Dimensions and weight
W x H x D
  315 x 105 x 405 mm (12.4 in x 4.13 in x 15.9 in)
Weight
PM 6306: 5.3 kg (11.7 lb)
PM 6304: 4.7 kg (10.4 lb)
