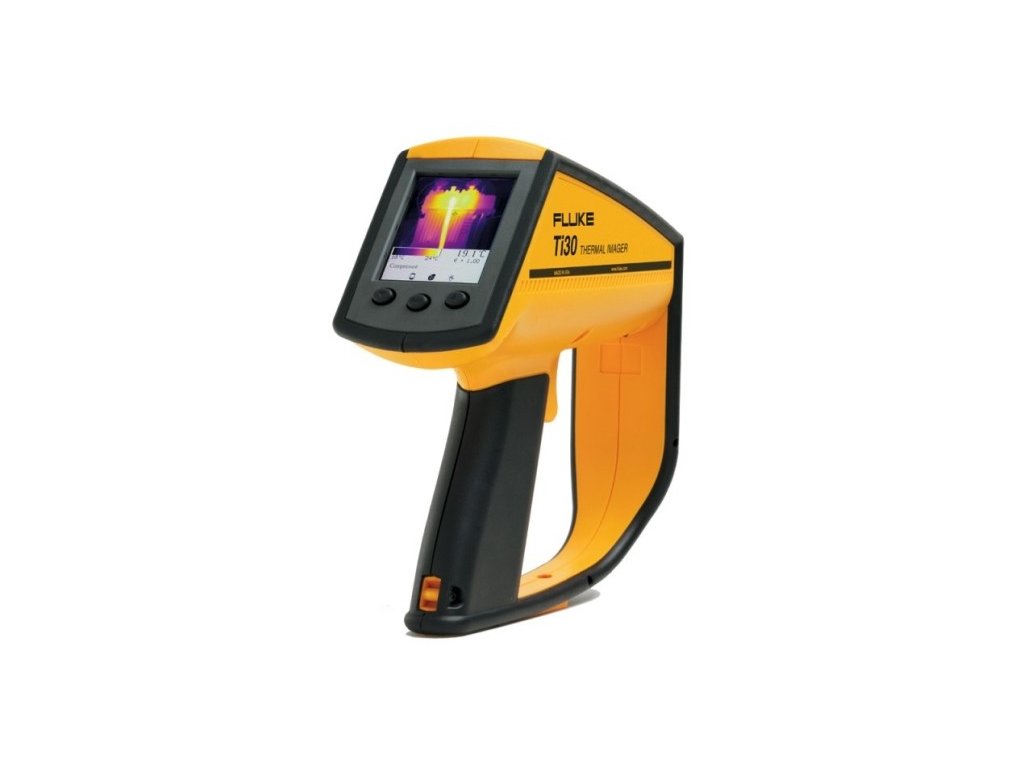

Fluke Ti30 - Termokamera do priemyslu (-10 až +250 °C)

Prístroj je určený na prevenciu, údržbu a hľadanie porúch zariadení (elektrických a mechanických) a stavebnú diagnostiku. Výsledkom je presný tepelný obraz s možnosťou merania až do 250°C. Prístroj je odolný voči prachu a vode podľa IP54. Životnosť batérií je 5 hodín pri nepretržitej prevádzke.

• typ detektora 120 x 160 FPA
• typ obrazu: plne rádiometrický
• teplotný rozsah: -10 až +250 °C
• optické rozlíšenie: 90:1
• doba chodu: 5 hodín
• kapacita: 100 obrázkov s rádiometrickými dátami
• termálna analýza: SW InsideIR

Thermal Imaging   >

Fluke Ti30 Thermal Imager

Specifications Thermal Specs Temperature Range: -10° to 250°C (14° to 482°F) Detector type: 120 x160 thermal element focal plane array (FPA) uncooled microbolometer Accuracy: ±2% or ±2ºC Accuracy (from -10 to 0 C): +/- 3ºC Repeatability: ±1% or ±1ºC (±2ºF) whichever is greater NETD: 200 mK Temperature Indication Resolution: 0.1 (ºF or ºC) Optical/IR Spectral Range: 7-14 microns Target Sighting: Single Laser Dot (Meets IEC Class 2 & FDA Class II requirements) Optical Resolution: 90:1 Slit Response Optical Resolution: 225:1 Minimum Diameter Measurement Spot: 7mm (0.27”) at 61cm (24”) Image Frame Rate: 9 Hz (20 Hz for USA and Canada) Field of view (FOV): 17º Horizontal x 12.8º Vertical Instantaneous Field of view (IFOV): 1.9mrad Controls Focus: Focusable, 61cm (24”) to infinity Temperature Scale: ºC or ºF selectable Palettes: Gray, Ironbow or Rainbow selectable Measurement Modes: Automatic, Semi-Automatic, or Manual selectable Laser On/Off: included Gain Control: included Level Control: included LCD Backlight: Bright, Dim, Off selectable Operational Adjustable Emissivity: 0.10 to 1.00 by 0.01 Liquid Crystal Display: TFT technology—optimized for both indoor and outdoor use, 59mm (2.3 in) x 54mm (2.1 in) Reflected Background Temperature: -50 to 460ºC (-58 to 860ºF) Ambient Operating Temperature: -10 to 50ºC (14 to 122ºF) Relative Humidity: 10 to 90% Non-condensing Storage Temperature: -25 to 70ºC (-13 to158ºF) [without batteries] Storage Capacity: 100 images Laser On Icon: included Low Battery Icon: included Palette Icon: included Measurement Mode Icon: included Thermal Analysis Software: InsideIR (included) PC Software Operating Systems: Microsoft® Windows® 98®, Windows 2000®, or Windows XP® Electrical Power: 6 AA batteries (not included) or rechargeable battery pack (included) Battery Life: Min. 5 hours continuous use Data Transfer: USB interface, total transfer time 30s for 100 pictures Storage Device: Flash Memory Other Tripod Mount (6.35 mm (1/4) 20 unc threading)   Weight (includes batteries): 1 kg (2.2 lb) Drop Test Results: 0.5 m (20 in.) Warranty: 1 year (U.S. only - warranty duration may vary by country) Manufacturing site: Made in U.S.A. Shock: 30G, IEC 68-2-29 Vibration: 2.5G, IEC 68-2-6 EMC: EN 61326-1 Keep your Thermal Imager at optimal performance! Check to see if you have the latest software or firmware version.
