Hart Scientific 5695 - Glass capsule SPRT (–200°C to 500°C)

  • Temperatures from –200°C (13K) to 500°C
  • Stability typically 0.001°C over 100°C range
  • Miniature capsule package eliminates stem conduction
Dostupnosť Opýtajte sa
Kód: 800
€1 €0,83 bez DPH
Hart Scientific 5695 - Glass capsule SPRT (–200°C to 500°C)
Hart Scientific 5695 - Glass capsule SPRT (–200°C to 500°C)
Ukončená výroba
Doprava zadarmo pre každý nákup nad 80€ s DPH vytvorený cez náš eshop.
Doprava zadarmo
pre každý nákup nad 80€ s DPH vytvorený cez náš eshop.
Široké možnosti platby na dobierku, kartou online alebo bankovým prevodom.
Široké možnosti
platby a doručenia pre vaše pohodlie
Tovar skladom odosielame v deň objednávky (do 13:00)
Tovar skladom
odosielame v deň objednávky kuriérom SPS (do 13:00).
Záručný, pozáručný servis teplomerov, multimetrov a iného metrologického vybavenia.
Servis a kalibrácia
teplomerov, multimetrov a iného metrologického vybavenia.

Sometimes you would like to make SPRT measurements but traditional SPRTs are too long or awkward for a particular application. Now Hart makes two versions of our miniature glass capsule SPRTs, which are perfect for cryogenics, calorimetry, and other metrology work requiring small SPRTs.

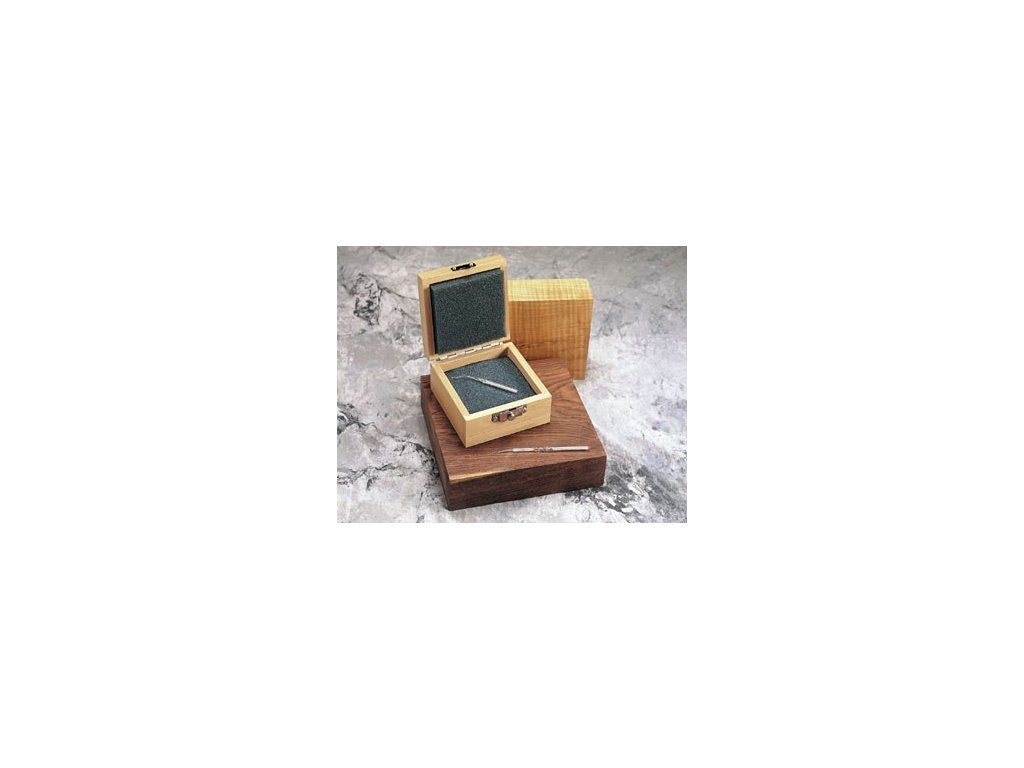

Both models are true SPRTs. The high-purity platinum wire is hand-wound on a glass cross frame in a strain-free design. The glass capsule is designed to match the thermal expansion of the platinum wire to ensure a true seal at all operating temperatures. The capsules are pressure sealed and come protected in their own maple case. Both models comply completely with ITS-90 and have the following resistance ratios:

W(302.9146K) ³ 1.11807
and
W(234.3156K) £ 0.844235

The 5686 covers temperatures from –260°C to 232°C, so it’s perfect for cryogenic applications. It is 5.8 mm in diameter and 56 mm long.

The 5695 is designed for high-temperature applications requiring a small SPRT. Its range is –200°C to 500°C and its size is 5.2 mm by 68 mm.

Fixed-point calibrations in Hart’s laboratory are available for both models. The Model 5686 may be calibrated from –200°C to 232°C, and the Model 5695 may be calibrated from –200°C to 420°C.

These SPRTs are small but meet customary SPRT performance for reproducibility, reliability, and stability. They solve many of the problems associated with taking precision measurements in situations unsuitable for traditional-length SPRTs. These are excellent calibration instruments.

Specifications

Temperature Range

5686: –260 °C to 232 °C (13K to 505K)
5695: –200 °C to 500 °C (73K to 773K)

Nominal RTPW

25.5W

Resistance Ratio

W(302.9146K) ³ 1.11807
W(234.3156K) £ 0.844235

Drift Rate

5686: < 0.005 °C per year over the entire range
5695:
< 0.01 °C per year over the entire range; typically 0.001 °C per year over a range of 100 °C

Self-heating at TPW

< 0.002 °C under 1 mA current

Reproducibility

±0.001 °C or better

RTPW Drift After Thermal Cycling

< 0.001 °C

Filling Gas

5686: helium
5695: argon and oxygen

Lead Wires

Four platinum wires, 30 mm long (1.18 in)

Size

5686: 5.8 mm dia. x 56 mm long (0.23 x 2.2 in)
5695: 5.2 (±0.4) mm dia. x 68 mm long (0.2 [±0.016 in] x 2.7 in)




Ordering Information

5686-B

Glass Capsule SPRT, –260 °C to 232 °C†

5695-B Glass Capsule SPRT, –200 °C to 500 °C†
†Maple carrying case included
