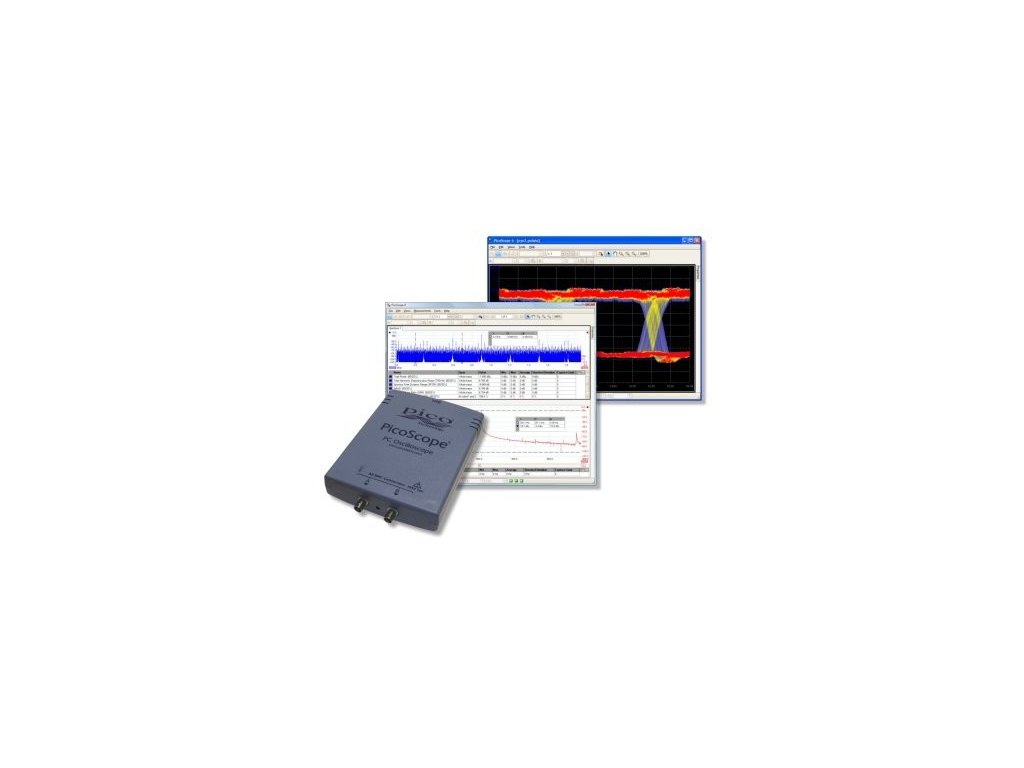

The PicoScope 2202 is part of the PicoScope 2000 series of low-cost PC oscilloscope from Pico — the world leader in PC oscilloscope design.

This inexpensive, dual channel, USB oscilloscope uses the same powerful technology as the acclaimed PicoScope 3000 series of professional PC oscilloscopes. Using this latest technology Pico are able to provide you with an oscilloscope with specifications not previously available with scopes in this price range.

The PicoScope 2202 entry level oscilloscope is ideally suited for use by hobbyists and students, yet with its fast sampling rate it is also powerful enough to be used by electronics technicians for scientific, and general analog and digital circuitry.

PicoScope oscilloscopes are supplied with PicoScope software that provides oscilloscope, spectrum analyzer and multimeter functions. PicoScope software makes full use of your PC’s processing capabilities allowing you to view real-time signals, zoom in on your signal, and save and print captured waveforms. Also supplied is Pico Log data acquisition software that transforms your PC into a high-speed data logger.

With oscilloscope, spectrum analyzer and data logger functions, all in an easy-to-use PC-based unit, the PicoScope 2202 represents outstanding value for money and an inexpensive solution to your test and measurement needs.

Bandwidth 2 MHz
Channels 2
Vertical resolution 8 bits
Enhanced vertical resolution 12 bits
Dynamic range 48 dB
Accuracy ±3%
Input ranges (full scale) ±50 mV to ±20 V
Input characteristics 1 MΩ in parallel with 20 pF
Overload protection ±100 V (signal input)
Input type Single-ended, BNC connector
Input coupling Software selectable AC/DC
Maximum sampling rate (single shot)
One channel in use
Two channels in use

20 MS/s (single channel)
10 MS/s (dual channel)
Buffer memory 32 kS
Waveform buffer Up to 1000 waveforms

Operating environment

+20 °C to +30 °C for quoted accuracy, 0 °C to +70 °C overall.
20 to 90% RH

Physical Dimensions
Dimensions 140 x 190 x 45 mm   (5.51 x 7.48 x 1.77 in)

PC Requirements
Minimum Processor: Pentium II processor, or equivalent
Memory: 64 MB (XP) / 512 MB (Vista) minimum
Operating system: Microsoft Windows XP SP2 (32-bit) or Vista (32 or 64-bit)
Ports: USB 1.1 compliant port
Recommended Processor: 2 GHz Pentium IV processor, or equivalent
Memory: 256 MB (XP) / 1 GB (Vista)
Operating system: Microsoft Windows XP SP2 (32-bit) or Vista (32 or 64-bit)
Ports: USB 2.0 compliant port

PicoScope 6 for Windows PicoScope 6 is your complete test and measurement lab in one application. Features include:
Capture modes - oscilloscope, spectrum and persistence modes
Channel maths - calculate the sum, dfference, product, inverse or create your own custom function using standard arithmetic, exponential and trigonometric functions
Automated measurements
Scope mode: AC RMS, cycle time, DC average, duty cycle, falling rate, fall time, frequency, high pulse width, low pulse width, maximum, minimum, peak-to-peak, rise time and rising rate
Spectrum mode: frequency at peak, amplitude at peak, total power, total harmonic distortion (THD), total harmonic distortion plus noise (THD+N), spurious-free dynamic range (SFDR), signal+noise+distortion to signal+noise ratio (SINAD), signal to noise ratio (SNR) and intermodulation distortion (IMD)
Export data formats - Comma separated values (CSV), tab delimited (TXT), windows bitmap (BMP), graphics interchange format (GIF), portable network graphics (PNG), MATLAB 4 format (MAT)
PicoLog for Windows PicoLog data acqusition software can collect up to 1 million samples. Features include:
Multiple views - view data as a graph, spreadsheet or text
Parameter scaling - convert raw data into standard engineering units
Math functions - use mathematical equations to calculate additional parameters
Alarm limits - program an alert if a parameter goes out of a specified range
IP networking - transfer measurements via a LAN or over the Internet
Linux drivers 32-bit and 64-bit
Software development kit A growing collection of drivers and example code for various programming languages
Language support
PicoScope 6

Full support for English, German and Spanish; menus only for French, Italian, Dutch, Hungarian and Simplified Chinese
User’s guide
Programmer’s guide
Installation guide

English, French, German, Italian, Spanish

Additional hardware (supplied) USB 2.0 cable, user manuals, software CD-ROM
PC interface USB 2.0 (USB 1.1 compatible) - cable supplied
Power requirements Powered from USB port
Compliance FCC, CE
Total Satisfaction Guarantee In the event that this product does not fully meet your requirements you can return it for an exchange or refund. To claim, the product must be returned in good condition within 14 days.
Warranty 2 years
