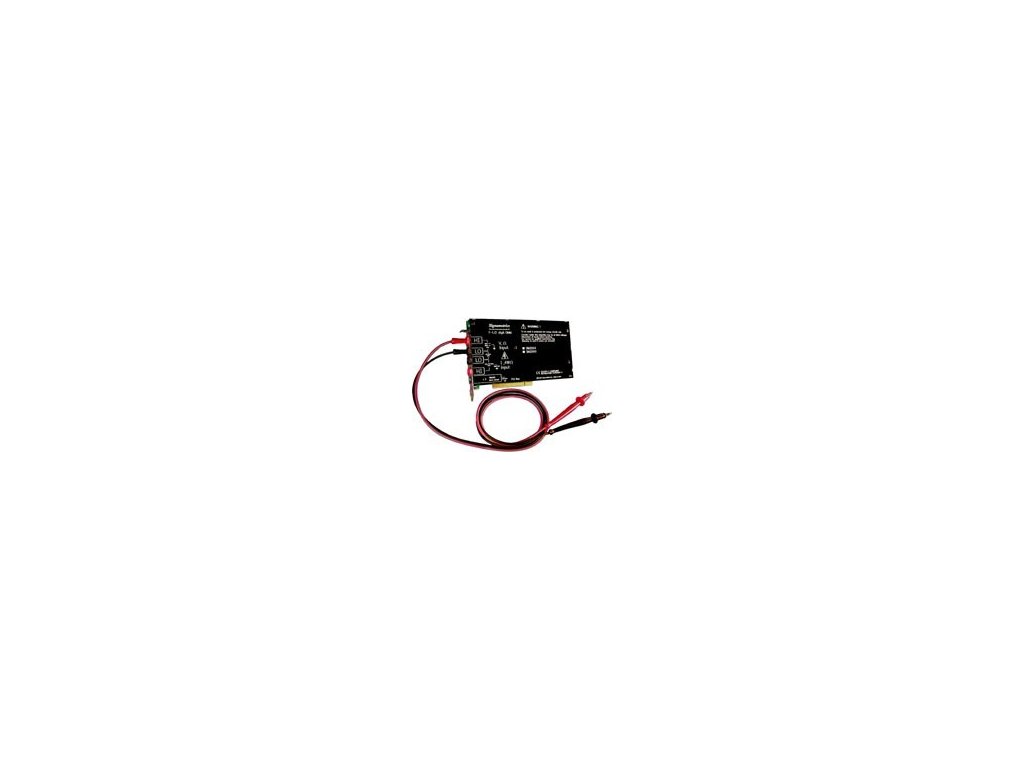

Signametrics SM2060 - 7-1/2 Digit PCI Multimeter

The SM2060 and SM2064 are the most reliable, accurate 7-1/2 digit multimeters in the PCI format. The SM2060 provides a comprehensive set of DMM functionality, is much faster than any bench-top DMM, and maintains high accuracy even at the fastest measurement rates.

Hardware Components

The SM2064 digital multimeter is a PCI card that slides directly into any PCI slot in your computer. Signal leads go straight from the SM2060 to the test application or to a switching card. This eliminates the need for IEEE488 or other controller languages.

By cutting down on the number of components and connections in your test system, the plug-in DMM provides a reliable, cost effective and concise automated measurement capabilities, without compromising performance.

Software Interface:

The software included with the SM2060 contains a simple, quick and clean installation package. Unlike some other products, it will not change any of the S/W tools, or your computer environment, nor will it store hundreds of megabytes of files on your hard drive. Once this Plug-and-Play package is installed, a graphical control panel (seen below) is available to try out your SM2060. All of the familiar DMM controls are available through this virtual front panel. You have the option to control the SM2060 without doing any programming or configuration straight out of the box.

Automated applications can be configured using Visual Basic, C, C++, LabView, LabWindows/CVI, TestPoint, ATEasy, Matlab, Delphi and more. Programming the DMM is made simple by an API that provides high level commands. An on-board controller insures that the SM2060 will operate properly on operating systems with a slower real-time response. The SM2060 comes with drivers for Windows and Linux systems.

Common Applications of Signametrics DMMs:

The SM2060 is suitable for a wide variety of uses. This includes automated production testing, laboratory automation, and Portable/field testing. Major users of Signametrics DMMs are in automotive and aerospace industries, education, and research & development.

Safe and Reliable:

For safety and accuracy the SM2060 has a 330V isolation barrier from the PC, making it a true differential and floating instrument. The rugged input protection enhances reliability. Accuracy is maintained with state of the art precision components.
