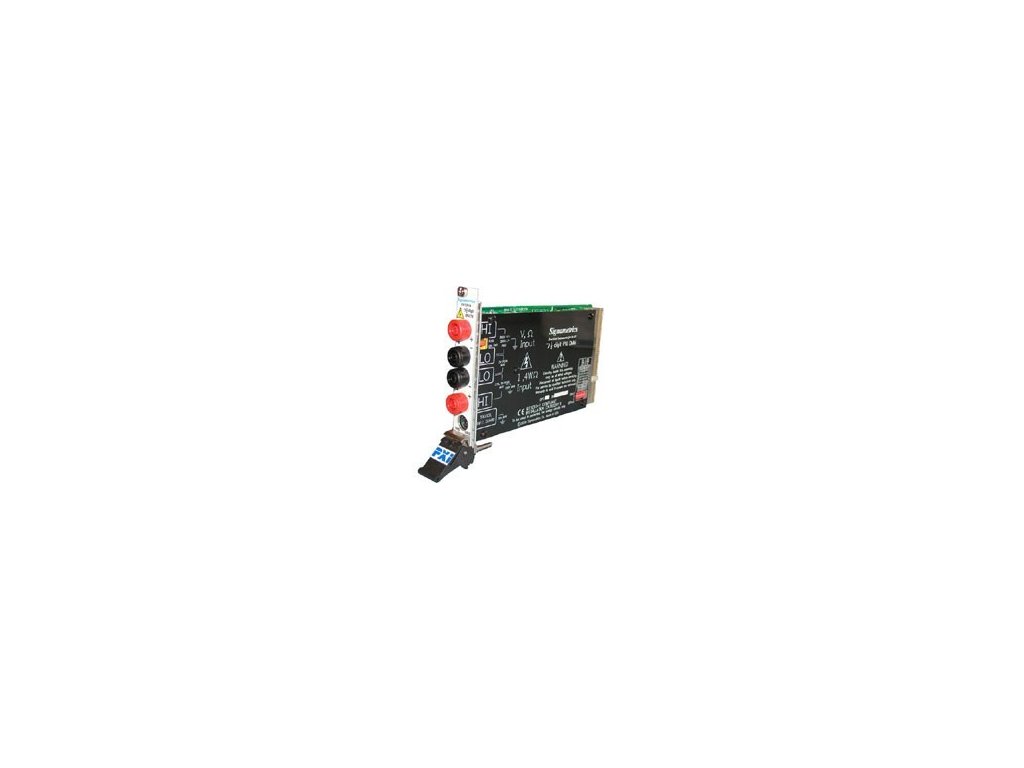

Signametrics SMX2064 - 7-1/2 Digit PXI Multimeter & LCR Meter
7-1/2 Digit PXI Multimeter & LCR Meter
- 20,000 readings/second
- DC & AC Volts & Current, 2-Wire, 4-Wire, 6-Wire Ohms
- FAST Capacitance, Inductance and Freq. measurements
- Voltage & Current Sourcing
- Precise triggering capabilities
- Full control over measurement timing
- NEW pulse & duty cycle generator
- NEW measurements at multiple input terminals
- Plug-and-Play software with graphical user interface
- Fully programmable with Visual Basic, C++, LabView etc.
The SMX2060 and SMX2064 are the most reliable, accurate 7-1/2 digit multimeters in the PXI format. The SMX2064 provides a comprehensive set of DMM and LCR Meter functionality, is much faster than any bench-top DMM, and maintains high accuracy even at the fastest measurement rates.
Hardware Components
The SMX2064 digital multimeter occupies a single 3U-slot in your PXI chassis. Signal leads go straight from the SMX2064 to the test application or to a switching card. This eliminates the need for IEEE488 or other controller languages.
By cutting down on the number of components and connections in your test system, the plug-in DMM provides a reliable, cost effective and concise automated measurement capabilities, without compromising performance.
Software Interface:
The software included with the SMX2064 contains a simple, quick and clean installation package. Unlike some other products, it will not change any of the S/W tools, or your computer environment, nor will it store hundreds of megabytes of files on your hard drive. Once this Plug-and-Play package is installed, a graphical control panel (seen below) is available to try out your SMX2064. All of the familiar DMM controls are available through this virtual front panel. You have the option to control the SMX2064 without doing any programming or configuration straight out of the box.
Automated applications can be configured using Visual Basic, C, C++, LabView, LabWindows/CVI, TestPoint, ATEasy, Matlab, Delphi and more. Programming the DMM is made simple by an API that provides high level commands. An on-board controller insures that the SMX2064 will operate properly on operating systems with a slower real-time response. The SMX2064 comes with drivers for Windows and Linux systems.
Common Applications of Signametrics DMMs:
The SMX2064 is suitable for a wide variety of uses. This includes automated production testing, laboratory automation, and Portable/field testing. Major users of Signametrics DMMs are in automotive and aerospace industries, education, and research & development.
Safe and Reliable:
For safety and accuracy the SMX2064 has a 330V isolation barrier from the PC, making it a true differential and floating instrument. The rugged input protection enhances reliability. Accuracy is maintained with state of the art precision components.
