TGR1040 - 1GHz Synthesised RF Generator

  10MHz to 1000MHz frequency range
  1kHz setability, +/-2ppm frequency stability
  -127dBm to +7dBm amplitude, 0.1dB steps
  FM modulation, internal or external
  80 character back-lit LCD display
  Keyboard and rotary encoder control
  Full remote control though RS232 or optional GPIB

Dostupnosť Opýtajte sa
Kód: 987
€1 €0,83 bez DPH
TTi TGR1040 - RF generátor 1GHz
TTi TGR1040 - RF generátor 1GHz
Ukončená výroba
Doprava zadarmo pre každý nákup nad 80€ s DPH vytvorený cez náš eshop.
Doprava zadarmo
pre každý nákup nad 80€ s DPH vytvorený cez náš eshop.
Široké možnosti platby na dobierku, kartou online alebo bankovým prevodom.
Široké možnosti
platby a doručenia pre vaše pohodlie
Tovar skladom odosielame v deň objednávky (do 13:00)
Tovar skladom
odosielame v deň objednávky kuriérom SPS (do 13:00).
Záručný, pozáručný servis teplomerov, multimetrov a iného metrologického vybavenia.
Servis a kalibrácia
teplomerov, multimetrov a iného metrologického vybavenia.

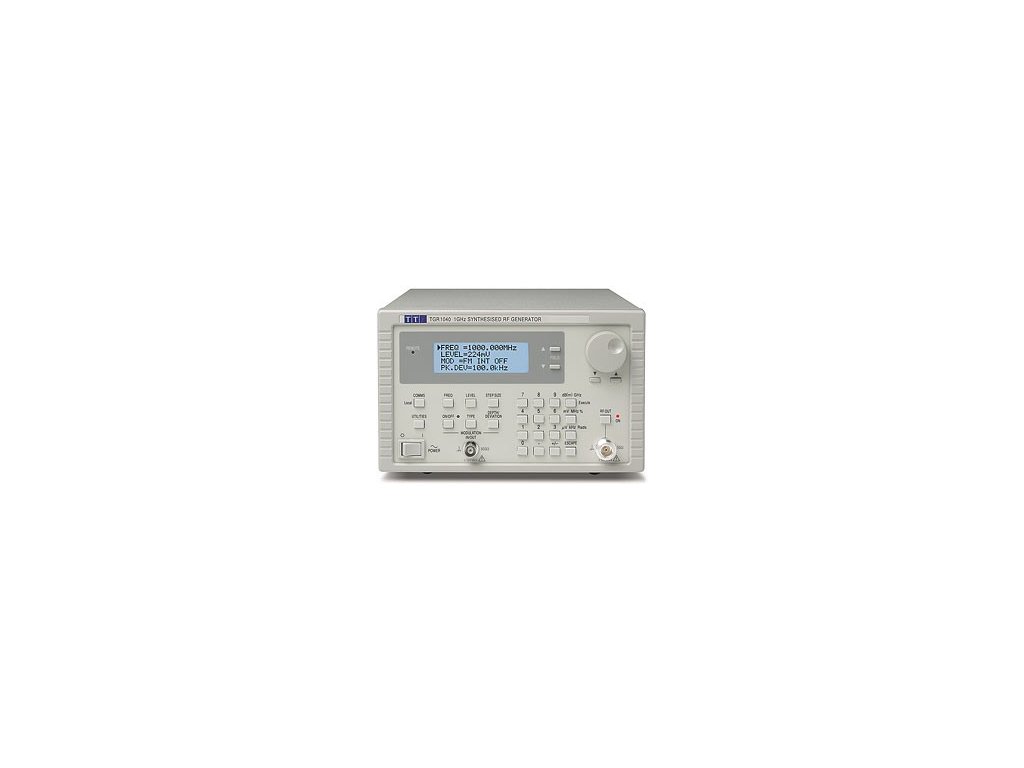

The TGR1040 is a low cost, synthesised RF signal generator which incorporates the essential features required for most development, test and service work - frequency accuracy and stability, wide dynamic range, low phase noise and low leakage.
The generator incororates both internal and external FM. It is suitable for FM radio receiver sensitivity measurements, system gain measurements, receiver tuning & alignment, oscillator substitutions, EMC/antenna/field strength measurements and as a signal source for many other RF circuit and system development tasks.
The instrument can be operated manually via the front panel or can be remotely controlled via the RS-232 interface (standard) or GPIB interface (optional). Nine memories are provided for user set-ups.
In addition the generator"s low cost, it’s ease of use and remote control capabilities make it eminently suitable for most production and development applications where a basic, stable signal source is required.
Specifications apply after 30 minute warm-up, ambient 5°C to 40°C
Frequency Range: 10MHz to 1000MHz
Setting Resolution: 1kHz by direct keyboard entry, or in user-set increments of 1kHz to 999·999MHz by rotary control or increment–decrement keys.
Display Resolution: 1kHz
Accuracy: ± 2 ppm over temperature range 5°C to 40°C.
Stability: <1ppm/year ageing.
Phase Noise: -110dBc/Hz at 25kHz offset, 500MHz carrier.
Equivalent peak deviation for 300Hz to 3·4kHz B/W: 10Hz at 100MHz carrier, 35Hz at 500MHz carrier, 180Hz at 1000MHz carrier
Output Level Range: –127dBm to +7dBm (0·1µV to 500mV into 50W).
Setting Resolution: 0·1dB (or 0·01µV to 1mV) by direct keyboard entry, or in user-set increments of 0·1dB to 100dB (or 0·01µV to 100mV) by rotary control or increment–decrement keys.
Accuracy: Better than ± 2dBm, except for output levels <-70dBm at 500 -1000 MHz, ± 3dBm.
Harmonics: Typically <-25dBc, maximum –20dBc, any carrier frequency, output level <0dBm.
Non-Harmonic Spurii: <–60dBc at >8kHz offset.
Carrier Leakage: <0.5uV generated into a 50W load by a 2 turn 25mm loop, at 25mm from the generator with output set to <-10dBm into a 50W sealed load.
Output Impedance: 50W
Output Connector: TYPE N
Reverse Protection: 50V DC
Output Switch: RF OUT on-off switch with LED for ON status.
Peak Deviation: 0·5kHz to 100kHz.
Setting Resolultion: 0·5kHz by direct keyboard entry, rotary control or increment–decrement keys.
Modulation Frequency: Internal 1kHz; External 300Hz to 50kHz
Deviation Accuracy: <±10% of setting ±0.5kHz, excl. residual FM, for 1kHz modulation, internal or 1Vrms external.
External Modulation
Frequency Response: ± 1dB from 30Hz to 50kHz relative to 1kHz.
Distortion: <2% total harmonic distortion at 1kHz mod. frequency, 100kHz deviation and 500MHz carrier.
Input Impedance: 100kOhm
Input Connector: BNC
Full remote control facilities are available through the RS232 (standard) or optional GPIB interfaces.
RS232: Variable Baud rate, 19200 Baud maximum, 9-pin D-connector. Compatible with Thurlby Thandar ARC (Addressable RS232 Chain).
IEEE-488: Conforming with IEEE488·1 and IEEE488·2.
Display: 20 character x 4 row backlit alphanumeric LCD
Data Entry: Keyboard selection of frequency, amplitude, etc.; value entry by numeric keys or by rotary control.
Stored Settings: Up to 9 complete instrument set-ups may be stored in battery-backed memory.
Size: 3U (130mm) height; half-rack (212mm) width; 330mm long.
Weight: 4·6 kg. (10 lb)
Power: 230V, 115V or 100V nominal 50/60Hz, adjustable internally; operating range ±14% of nominal; 30VA max. Installation Category II.
Options: IEEE-488 interface; 19 inch rack mounting kit.
Operating Range: +5°C to 40°C, 20-80% RH.
Storage Range: –20°C to + 60°C.
Environmental: Indoor use < 2000m, Pollution Degree 1.
Safety: Complies with EN61010-1.
EMC: Complies with EN61326
