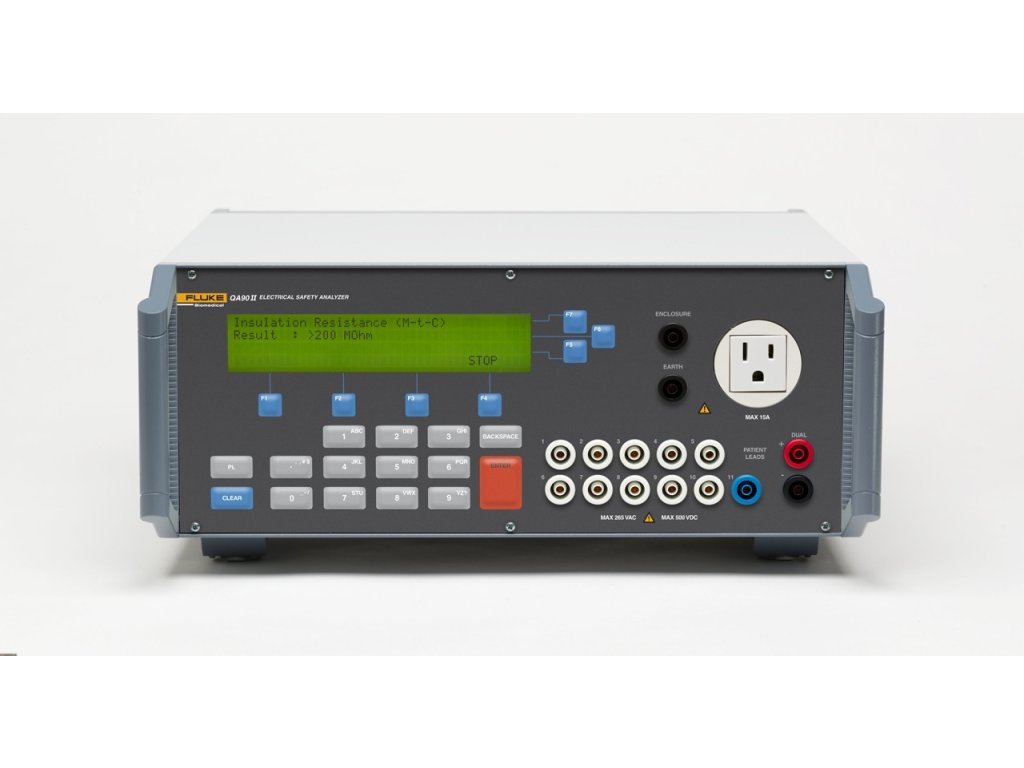

    Fluke BM. QA-90 MKII - Electrical Safety Analyzer

    Značka: Fluke

    The QA-90 represents a new generation of safety testing equipment. QA-90 is the only automatic safety tester that can test Instruments containing modules with different classes of protection in one test run (i.e. CF and BF defibrillators). It is simple to use. All you need to do is select the type and class of the equipment to be tested. When you press START, the QA-90 will execute the tests prescribed in the selected standard. The test result can either be printed out immediately or stored internally in the unit for later use. The QA-90 can be fully remotely controlled via ansur software. With ansur, you can make your own test protocols, store the information on disk and export formatted data to equipment management databases

    Dostupnosť Na objednávku
    Môžeme doručiť do:
    16.8.2024
    Možnosti doručenia
    Kód: 1326
    €1 €0,83 bez DPH
    Fluke BM. QA-90 MKII - Electrical Safety Analyzer
    Značka: Fluke
    Fluke BM. QA-90 MKII - Electrical Safety Analyzer
    Ukončená výroba
    Doprava zadarmo pre každý nákup nad 80€ s DPH vytvorený cez náš eshop s doručením na Slovensko.
    Doprava zadarmo
    pre každý nákup nad 80€ s DPH vytvorený cez náš eshop s doručením na Slovensko.
    Široké možnosti platby na dobierku, kartou online alebo bankovým prevodom.
    Široké možnosti
    platby a doručenia pre vaše pohodlie. Prijímame platobné karty, Google Pay alebo Apple Pay.
    Tovar skladom odosielame v deň objednávky (do 13:00)
    Tovar skladom
    odosielame v deň objednávky kuriérom SPS alebo službou Packeta (objednávky do 13:00).
    Záručný, pozáručný servis teplomerov, multimetrov a iného metrologického vybavenia.
    Servis a kalibrácia
    teplomerov, multimetrov a iného metrologického vybavenia vrátane záručného a pozáručného servisu.
    • Small size - easy to carry
    • Can operate completely standalone or by remote control with the ansur software
    • Tests instruments containing modules with different protection classes in one test run i.e. CF and BF (defibrillator)
    • Tests module separation
    • Residual current measurements (optional)
    • 11 patient inputs (laboratory style)
    • Test according to: IEC 60601.1, IEC 60601.1.1, IEC 60601.2.4, IEC 61010, VDE 751-1:1990, VDE 751-1: 2001, UL 2601.1, AS 3200.1, DB 9801, HEI 95, AAMI.
    • Testing against standard or user defined limits
    • Automatic, stepwise and manual test modes
    • Programmable power up delay time before measurements
    • Integrated keypad
    • Internal memory for uploading test sequences and storing typically up to 200 equipment test results
    • Built-in standard A4 protocols for on site documentation (localised)
    • RS-232, Centronics and Bar code interface
    Biomedical Test   >   Electrical Safety Analyzers   >
    QA-90 MKII Electrical Safety Analyzer
    Specifications
    Test Sequence
      Individual test sequences may be compiled to satisfy national and international standards: IEC 60601.1, VDE 0750 T1/12-91, BS 5724, UL 2601.1, CAN/CSA-C22.2 No 601.1-M90, AS 3200.1, NZS 6150:1990, VDE 0751:1990, VDE 0751:2001, IEC 60601.1.1, IEC 60601.2.4, UL 544, HEI 95, DB9801 and more
    Voltage Measurement
    The voltage measurement may be executed in the following ways – Between lead 1 and 2
      – Between lead 1 and Earth
      – Between lead 2 and Earth
      – Between input/output E+ and E- (floating inputs/outputs)
    Range: 0 V to 400 V true RMS
    Resolution: 0.1 V
    Accuracy: DC-100 Hz 1 % of full scale ± 1 LSD
    100 Hz-1 kHz 2 % of scale ± 1 LSD
    No. of Tests: 4 or multiple
    Current Consumption
      The current measurement may be executed in lead no. 1 (live)
    Range 1: 0 mA to 1000 mA true RMS (@ < 250 V ac)
      Resolution: 1 mA
      Accuracy: ± 2 % of full scale ± 1 LSD
      No. of Tests: 1 or multiple
    Range 2: 1 A to 16 A true RMS (@ < 250 V ac)
      Resolution: 1 mA
      Accuracy: ± 1 % of full scale ± 1 LSD
      No. of Tests: 1 or multiple
    Protective Earth
      The test current is 25 A or 1 A, delivered from a transformer with a maximum idle voltage of 6 V. The measurement can be performed on ground leads or between E+ and E- (floating inputs/outputs)
    Range: 0 Mohm to 2000 Mohm
    Resolution: 1 Mohm
    Accuracy: ± 2 % of full scale or 5 % of reading
    No. of Tests: 1, 2, or multiple
    Insulating Resistance
      The measurement of the insulating resistance may be executed between casing and power unit, or between patient module and power unit
    Test voltage: 500 V dc through a 130 kohm limiting resistor
    No. of Tests: 1, 2, or multiple.
    Range 1: 1 Mohm to 50 Mohm
      Resolution: 1 Mohm
      Accuracy: ± 2 % of full scale ± 1 LSD
    Range 2: 5 Mohm to 200 Mohm
      Resolution: 1 Mohm
      Accuracy: ± 2 % of full scale ± 1 LSD
    Leakage Currents
      All measurements can be performed with a IEC 601.1 filter (patient equivalent), or without (flat frequency response). The filter can be exchanged with filters covering other standards. All measurements can be performed as true RMS measurements, or AC/DC measurements.
      The following leakage currents are measured, No. of Tests:
      Earth leakage current, 4
      Enclosure leakage current, 6 or multiple
      Residual current, 2
      Substitute equipment current, 1
      Direct current, 2
      Current Fig. 9, 1
      The following leakage currents are measured for each module, No. of Tests:
      Patient leakage current, 6
      Mains on applied part leakage current, 2
      Patient Auxiliary current, 6
      Floating dual lead measurement of leakage currents, Multiple
      Substitute patient current, 1
      In one test run a maximum of 11 modules with different protection classes may be tested
    Accuracy
    Range 1: 0 to 99.9 µA
      Resolution: 0.1 μA
      Accuracy: ± 2 % of full scale ± 1 LSD
    Range 2: 100 µ to 1000 µA
      Resolution: 1 μA
      Accuracy: ± 2 % of full scale ± 1 LSD
    Range 3: 1.0 mA to 10.0 mA
      Resolution: 1 μA
      Accuracy: ± 1 % of full scale ± 1 LSD
    Frequency Response
      Dc to 1 MHz (-3 dB) with a Crest factor: > 2
      The test voltage for the mains on applied part measurement is 110% of the line voltage, delivered through a limiting resistor of 47 kohm
    Ansur Software offers the following features
    Remote Control
      All functions and tests in QA-90 may be performed from the PC
    User-Definition of Test Standards
      Select predefined standards or create your own local/new standard with test limits
    User-Programmable Test Sequences
      Allows user-defined test sequences with a selection of tests from the selected test standard
    Customized Protocols
      Create your own protocol format including a header, checklist, job instructions, a command field and a test sequence
    Storage and Recall
      Protocol formats and data may be stored, recalled, printed out, or transferred to D-base systems
    General Information
    Temperature Requirements
    + 15 °C to +35 °C While operating
    0 °C to +50 °C For storage
    Display
    Type: LCD
    Alphanumeric Format:: 4 lines by 40 characters
    Display Control: 7 F-keys and a keypad
    Data Input/Outputs (2)
      Parallel printer port (1); bi-directional
      RS-232 (1) for computer control
      Bar code interface
    Power
      From 100 V ac to 240 V ac, 47/63 Hz
    Housing
      Metal case
    Dimensions (LxWxH)
      305 mm x 342 mm x 132 mm
    Weight
      5.8 kg
    Recommended Printers:
      HP Desk Jet, Canon Bubble Jet or compatible
