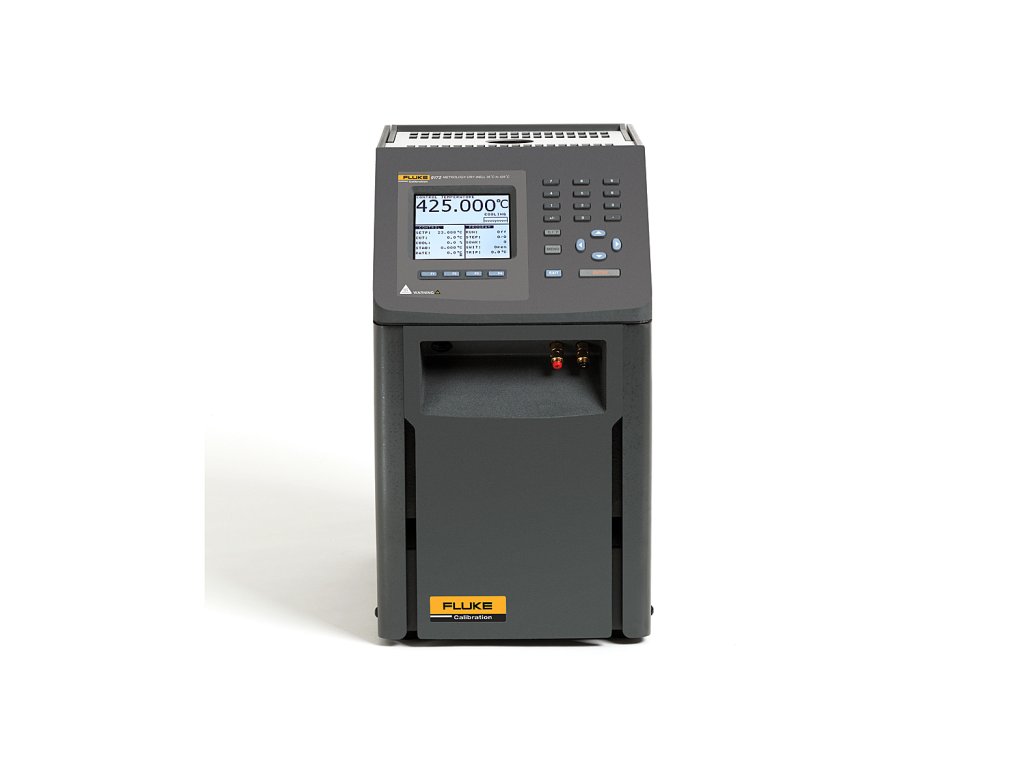

Fluke Calibration 9172 - Kalibračná piecka (35 °C do 425 °C )

  • Best-performing industrial heat sources (accuracy, stability, uniformity) in the world
  • Immersion depth to 203 mm (8 in)
  • Optional ITS-90 reference input reads PRTs to ±0.006 °C
  • Temperature range from –45 °C to 700 °C
Dostupnosť Opýtajte sa
Možnosti doručenia
Kód: 2459299
€10 821,60 €9 018 bez DPH
Fluke Calibration 9172 - Kalibračná piecka (35 °C do 425 °C )
Fluke 9172 - kalibračná piecka (35 °C do 425 °C );Fluke 9172 - kalibračná piecka (35 °C do 425 °C );Fluke 9172 - kalibračná piecka (35 °C do 425 °C );Fluke 9172 - kalibračná piecka (35 °C do 425 °C )
Cena na požiadanie
Doprava zadarmo pre každý nákup nad 80€ s DPH vytvorený cez náš eshop s doručením na Slovensko.
Doprava zadarmo
pre každý nákup nad 80€ s DPH vytvorený cez náš eshop s doručením na Slovensko.
Široké možnosti platby na dobierku, kartou online alebo bankovým prevodom.
Široké možnosti
platby a doručenia pre vaše pohodlie. Prijímame platobné karty, Google Pay alebo Apple Pay.
Tovar skladom odosielame v deň objednávky (do 13:00)
Tovar skladom
odosielame v deň objednávky kuriérom SPS alebo službou Packeta (objednávky do 13:00).
Záručný, pozáručný servis teplomerov, multimetrov a iného metrologického vybavenia.
Servis a kalibrácia
teplomerov, multimetrov a iného metrologického vybavenia vrátane záručného a pozáručného servisu.

Every once in a while, a new product comes around that changes the rules. It happened when we introduced handheld dry-wells. It happened when we introduced Micro-Baths. Now we’ve combined bath-level performance with dry-well functionality and legitimate reference thermometry to create Metrology Wells.

With groundbreaking new proprietary electronics from Fluke’s Hart Scientific Division (patents pending), Metrology Wells let you bring lab-quality performance into whatever field environment you might work in. New analog and digital control techniques provide stability as good as ±0.005 °C. And with dual-zone control, axial (or “vertical”) uniformity is as good as ±0.02 °C over a 60 mm (2.36 in) zone. (That’s 60 mm!) Such performance doesn’t exist anywhere else outside of fluid baths.

In short, there are six critical components of performance in an industrial heat source (which the European metrology community explains, for example, in the document EA-10/13): calibrated display accuracy, stability, axial (vertical) uniformity, radial (well-to-well) uniformity, impact from loading, and hysteresis. We added a seventh in the form of a legitimate reference thermometer input and created an entirely new product category: Metrology Wells.

(By the way, Metrology Wells are the only products on the market supported by published specifications addressing every performance category in the EA-10/13. Our specs aren’t just hopes or guidelines. They apply to every Metrology Well we sell.)

Display accuracy

Dry-wells are typically calibrated by inserting a calibrated PRT into one of the wells and making adjustments to the calibrator’s internal control sensor based on the readings from the PRT. This has limited value because the unique characteristics of the reference PRT, which essentially become “calibrated into” the calibrator, are often quite different from the thermometers tested by the calibrator. This is complicated by the presence of significant thermal gradients in the block and inadequate sensor immersion into blocks that are simply too short.

Metrology Wells are different. Temperature gradients, loading effects, and hysteresis have been minimized to make the calibration of the display much more meaningful. We use only traceable, accredited PRTs to calibrate Metrology Wells and our proprietary electronics consistently demonstrate repeatable accuracy more than ten times better than our specs, which range from ±0.1 °C at the most commonly used temperatures to ±0.25 °C at 661 °C.

An application note is available to help better understand the uncertainties mentioned above. Click here (right click and “Save Target As...”), Understanding the uncertainties associated with the use of Metrology Wells to download the application note in Adobe Acrobat (.pdf) format.

Built-In Reference Thermometry!

Fluke’s Hart Scientific Division has been making the world’s best thermometer readout devices for quite some time. Our Super-Thermometer, Black Stack, and Tweener thermometers are well-known everywhere. Now we’re making our proprietary Tweener measurement circuitry available directly in a heat source — our new Metrology Wells.

This optionally built-in input accepts 100-, 25-, and 10-ohm PRTs. It reads thermometer probes accurately from ±0.006 °C at 0 °C to ±0.027 °C at 661 °C, not including errors from the probe. It is compatible with every PRT sold by Hart and connects to Metrology Wells via a 5-pin DIN connector.

Two things dramatically differentiate the Tweener circuit from the measurement electronics built into many dry-wells. First, it accepts unique ITS-90 characterization coefficients from reference thermometers, which allow you to take full advantage of the accuracies of those thermometers. Second, it comes with a traceable, accredited calibration, providing you full confidence in the integrity of its measurements.

Nothing beats a Hart Metrology Well for industrial thermal performance. And nothing beats a Tweener measurement for built-in reference thermometry.

For even better accuracy, Metrology Wells may be ordered with built-in electronics for reading external PRTs with ITS-90 characterizations. (See sidebar, Built in Reference Thermometry)

Stability

Heat sources from Hart have long been known as the most stable heat sources in the world. It only gets better with Metrology Wells. Both low-temperature units (Models 9170 and 9171) are stable to ±0.005 °C over their full range. Even the 700 °C unit (Model 9173) achieves stability of ±0.03 °C. Better stability can only be found in fluid baths and primary fixed-point devices. The “off-the-shelf controllers” used by most dry-well manufacturers simply can’t provide this level of performance.

Axial uniformity

The EA-10/13 document suggests that dry-wells should include a zone of maximum temperature homogeneity, which extends for 40 mm (1.54 in), usually at the bottom of a well. Metrology Wells, however, combine our unique electronics with dual-zone control and more well depth than is found in dry-wells to provide homogeneous zones over 60 mm (2.36 in). Vertical gradients in these zones range from ±0.02 °C at 0 °C to ±0.4 °C at 700 °C.

What’s more, Metrology Wells actually have these specifications published for each unit, and we stand by them.

Radial uniformity

Radial uniformity is the difference in temperature between one well and another well. For poorly designed heat sources, or when large-diameter probes are used, these differences can be very large. For Metrology Wells, we define our specification as the largest temperature difference between the vertically homogeneous zones of any two wells that are each 6.4 mm (0.25 in) in diameter or smaller. The cold units (9170 and 9171) provide radial uniformity of ±0.01 °C and the hot units (9172 and 9173) range from ±0.01 °C to ±0.04 °C (at 700 °C).

Loading

Loading is defined as the change in temperature sensed by a reference thermometer inserted into the bottom of a well after the rest of the wells are filled with thermometers, too.

For Metrology Wells, loading effects are minimized for the same reasons that axial gradients are minimized. We use deeper wells than found in dry-wells. And we utilize proprietary dual-zone controls. Loading effects are as minimal as ±0.005 °C in the cold units.

Hysteresis

Thermal hysteresis exists far more in internal control sensors than in good-quality reference PRTs. It is evidenced by the difference in two external measurements of the same set-point temperature when that temperature is approached from two different directions (hotter or colder) and is usually largest at the midpoint of a heat source’s temperature range. It exists because control sensors are typically designed for ruggedness and do not have the “strain free” design characteristics of SPRTs, or even most PRTs. For Metrology Wells, hysteresis effects range from 0.025 °C to 0.07 °C.

Immersion depth

Immersion depth matters. Not only does it help minimize axial gradient and loading effects, it helps address the unique immersion characteristics of each thermometer tested in the heat source. Those characteristics include the location and size of the actual sensor within the probe, the width  and thermal mass of the probe, and the lead wires used to connect the sensor to the outside world. Metrology Wells feature well depths of 203 mm (8 in) in the Models 9171, 9172, and 9173. The Model 9170 is 160 mm (6.3 in) deep to facilitate temperature of –45 °C.

Other great features

A large LCD display, numeric keypad, and on-screen menus make use of Metrology Wells simple and intuitive. The display shows the block temperature, built-in reference thermometer temperature, cutout temperature, stability criteria, and ramp rate. The user interface can be configured to display in English, French, or Chinese.

All four models come with an RS-232 serial interface and the Model 9930, Interface-it software. All are also compatible with Model 9938 MET/TEMP II software for completely automated calibrations of RTDs, thermocouples, and thermistors (Metrology Wells with built-in reference input options will be compatible with MET/TEMP II in early 2006).

Even without a PC, Metrology Wells have four different preprogrammed calibration tasks that allow up to eight temperature set points with “ramp and soak” times between each. There is an automated “switch test” protocol that zeros in on the “dead-band” for thermal switches. And a dedicated °C/°F button allows for easy switching of temperature units.

Any of six standard inserts may be ordered with each unit, accommodating a variety of metric- and imperial-sized probe diameters. (See inset at right. Download the complete data sheet to view details.) And Metrology Wells are small enough and light enough to go anywhere.

9170

The Model 9170 achieves the lowest temperatures of the series, reaching –45 °C in normal room conditions. The 9170 is stable to ±0.005 °C over its full temperature range (up to 140 °C) and has 160 mm (6.3 in) of immersion depth. With axial uniformity of ±0.02 °C and radial uniformity of ±0.01 °C, this model delivers exceptional uncertainty budgets and is perfect  for a variety of pharmaceutical and other applications.

9171

If you need more depth, the Model 9171 provides 203 mm (8 in) of immersion over temperatures from –30 °C all the way to 155 °C with full-range stability of ±0.005 °C. Just like the 9170, this dry-well has exceptional axial and radial uniformity. The display of the 9171 is calibrated to an accuracy of ±0.1 °C over its full range.

9172

The Model 9172 provides temperatures from 35 °C to 425 °C with a calibrated display accurate to ±0.2 °C at 425 °C. In addition to exceptional accuracy, the 9172 is stable from ±0.005 °C to ±0.01 °C, depending on temperature. With 203 mm (8 in) of immersion, the 9172 significantly reduces stem conduction errors at high temperatures.

9173

For work between 50 °C and 700 °C, the Model 9173 provides unmatched performance. The 9173 has a display accuracy of ±0.25 °C at 700 °C and an immersion depth of 203 mm (8 in). Stability and uniformity performance of this unit are enough to dramatically reduce uncertainty budgets for calibrations of thermometers at high temperatures.

Of course, there’s still a place in the world for dry-wells or “dry block” calibrators. In fact, Hart makes and will continue to make some of the best performing, portable, fast dry-wells in the world. There’s still nothing better for a quick test of industrial temperature sensor performance.

We just can’t resist the urge, though, to keep coming up with breakthrough product designs that can dramatically impact the ways people work and the results they see. For the absolute best performance in a portable temperature source, Metrology Wells raise the standard to an entirely new level.

Specifications



9170

9171

9172

9173

Range (at 23 °C ambient)

–45 °C to 140 °C
(–49 °F to 284 °F)

–30 °C to 155 °C
(–22 °F to 311 °F)

35 °C to 425 °C
(95 °F to 797 °F)

50 °C to 700 °C
(122 °F to 1292 °F)

Display Accuracy

±0.1 °C full range

±0.1 °C at 100 °C
±0.15 °C at 225 °C
±0.2 °C at 425 °C

±0.2 °C at 425 °C
±0.25 °C at 660 °C

Stability

±0.005 °C full range

±0.005 °C to 100 °C
±0.008 °C to 225 °C
±0.01 °C to 425 °C

±0.005 °C to 100 °C
±0.01 °C to 425 °C
±0.03 °C to 700 °C

Axial Uniformity (60 mm)

±0.1 °C at –45 °C
±0.04 °C at –35 °C
±0.02 °C at 0 °C
±0.07 °C at 140 °C

±0.025 °C at –30 °C
±0.02 °C at 0 °C
±0.07 °C at 155 °C

±0.05 °C at 100 °C
±0.1 °C at 225 °C
±0.2 °C at 425 °C

±0.1 °C at 100 °C
±0.25 °C at 425 °C
±0.4 °C at 700 °C

Radial Uniformity

±0.01 °C full range

±0.01 °C at 100 °C
±0.02 °C at 225 °C
±0.025 °C at 425 °C

±0.01 °C at 100 °C
±0.025 °C at 425 °C
±0.04 °C at 700 °C

Loading Effect (with a 6.35 mm reference probe and three 6.35 mm probes)

±0.02 °C at –45 °C
±0.005 °C at –35 °C
±0.01 °C at 140 °C

±0.005 °C at –30 °C
±0.005 °C at 0 °C
±0.01 °C at 155 °C

±0.01 °C full range

±0.02 °C at 425 °C
±0.04 °C at 700 °C

Hysteresis

0.025 °C

0.04 °C

0.07 °C

Well Depth

160 mm (6.3 in)

203 mm (8 in)

Resolution

0.001 °C

Display

LCD, °C or °F, user-selectable

Key Pad

Ten key with decimal and +/- button. Function keys, menu key, and °C / °F key.

Cooling Time

44 min: 23 °C to –45 °C
19 min: 23 °C to –30 °C
19 min: 140 °C to 23 °C

30 min: 23 °C to –30 °C
25 min: 155 °C to 23 °C

220 min: 425 °C to 35 °C
100 min: 425 °C to 100 °C

235 min: 700 °C to 50 °C
153 min: 700 °C to 100 °C

Heating Time

32 min: 23 °C to 140 °C
45 min: –45 °C to 140 °C

44 min: 23 °C to 155 °C
56 min: –30 °C to 155 °C

27 min: 35 °C to 425 °C

46 min: 50 °C to 700 °C

Size (height x width x depth)

366 x 203 x 323 mm (14.4 x 8 x 12.7 in)

Weight

15 kg (33 lb)

15 kg (33 lb)

13.2 kg (29 lb)

15 kg (33 lb)

Power

115 VAC (±10%), or
230 VAC (±10%), 50/60 Hz, 550 W

115 VAC (±10%), or
230 VAC (±10%), 50/60 Hz, 1025 W

Traceable Calibration (NIST)

Data at –45 °C, 0 °C, 50 °C, 100 °C, and 140 °C

Data at –30 °C, 0 °C, 50 °C, 100 °C, and 155 °C

Data at 100 °C, 150 °C, 250 °C, 350 °C, and 425 °C

Data at 100 °C, 200 °C, 350 °C, 500 °C, and 660 °C

Calibrated to 660 °C; reference thermometer recommended at higher temperatures.

Specifications

Built-in Reference Input

Temperature Range

–200 °C to 962 °C (–328 °F to 1764 °F)

Resistance Range

0 W to 400 W, auto-ranging

Characterizations

ITS-90 subranges 4, 6, 7, 8, 9, 10, and 11 Callendar-Van Dusen (CVD): R0, a, b, d

Resistance Accuracy

0 W to 20 W: 0.0005 W
20 W to 400 W: 25 ppm

Temperature Accuracy (does not include probe uncertainty)

10 W PRTs:
±0.013 °C at 0 °C
±0.014 °C at 155 °C
±0.019 °C at 425 °C
±0.028 °C at 700 °C

25 W and 100 W PRTs:
±0.007 °C at –100 °C
±0.006 °C at 0 °C
±0.011 °C at 155 °C
±0.013 °C at 225 °C
±0.019 °C at 425 °C
±0.027 °C at 661 °C

Resistance Resolution

0 W to 20 W: 0.0001 W
20 W to 400 W: 0.001 W

Measurement Period

1 second

Probe Connection

4-wire with shield, 5-pin DIN connector

Calibration

NVLAP accredited (built-in reference input only), NIST-traceable calibration provided
