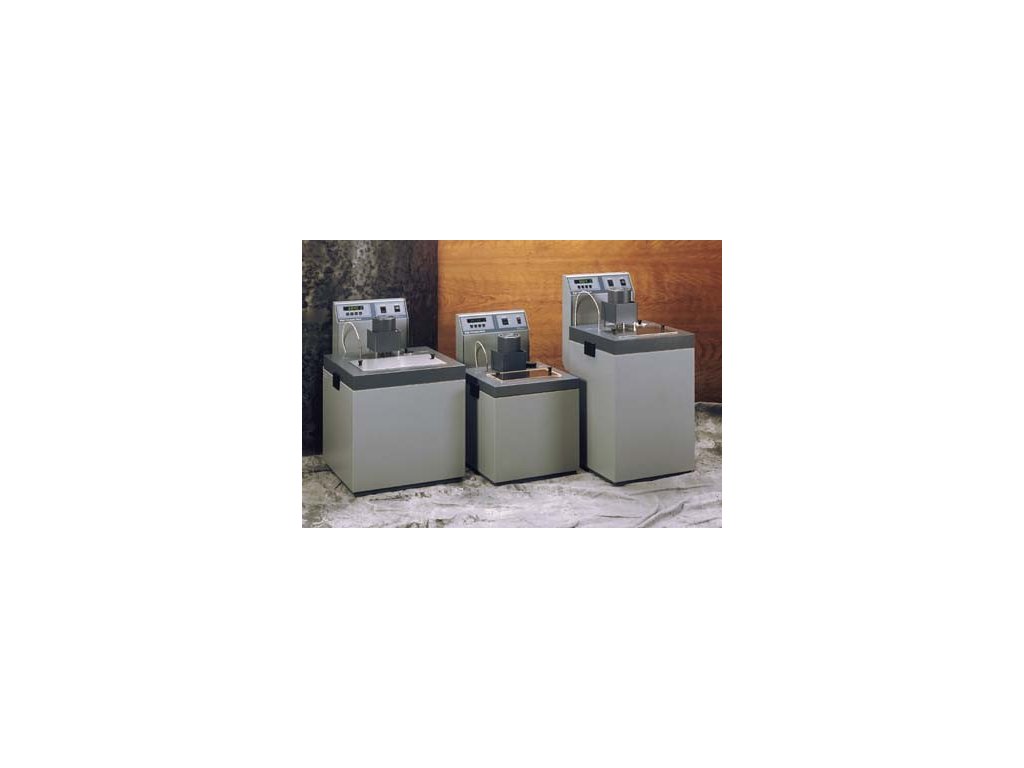

Hart Scientific 2001-6022 - Standard Bath, deep (40°C to 300°C)

Značka: Fluke
  • Large-capacity tanks for higher productivity
  • Calibrations up to 300 °C
  • Built-in cooling coils for faster cooling
  • Stability to ±0.001 °C
Dostupnosť Na objednávku
Môžeme doručiť do:
16.8.2024
Možnosti doručenia
Kód: 744
€1 €0,83 bez DPH
Hart Scientific 2001-6022 - Standard Bath, deep (40°C to 300°C)
Značka: Fluke
Hart Scientific 2001-6022 - Standard Bath, deep (40°C to 300°C)
Ukončená výroba
Doprava zadarmo pre každý nákup nad 80€ s DPH vytvorený cez náš eshop s doručením na Slovensko.
Doprava zadarmo
pre každý nákup nad 80€ s DPH vytvorený cez náš eshop s doručením na Slovensko.
Široké možnosti platby na dobierku, kartou online alebo bankovým prevodom.
Široké možnosti
platby a doručenia pre vaše pohodlie. Prijímame platobné karty, Google Pay alebo Apple Pay.
Tovar skladom odosielame v deň objednávky (do 13:00)
Tovar skladom
odosielame v deň objednávky kuriérom SPS alebo službou Packeta (objednávky do 13:00).
Záručný, pozáručný servis teplomerov, multimetrov a iného metrologického vybavenia.
Servis a kalibrácia
teplomerov, multimetrov a iného metrologického vybavenia vrátane záručného a pozáručného servisu.

Comparison calibrations require a heat source that’s stable and uniform, and for moderately high temperatures nothing provides a better heat source than a Hart oil bath.

Hart oil baths are stable to ±0.001 °C and do not require calibration blocks or use of special calibration techniques to achieve that stability. The specifications of all Hart baths are “true” specifications representing the performance you can expect to achieve in your lab under your operating conditions. Other companies advertise specs that they know you will never see in your lab. When their baths fail to perform, they blame it on you.

Hart baths are built using a unique tank design that guarantees the best uniformity possible in a liquid bath. This, coupled with the industry’s best-selling digital bath controller, achieves uncompromised performance and ease of use.

Not only does Hart’s digital controller have features like its “Super-Tweak” high-resolution mode so you can dial in the exact temperatures you want, it also lets you completely automate the calibration process using your PC and Hart’s 9938 MET/TEMP II software.

You’ll love these baths, and once you’ve got one you’ll never buy anything else. There’s a bath to match any temperature range, depth, price, and performance you need.

Hart sells a complete selection of fluids for your bath. You can find these here.

Read about the safety features found in Hart baths.

Specifications

6020

6022

6024

Range

40 °C to 300 °C

Stability

±0.001 °C at 40 °C (water)
±0.003 °C at 100 °C (oil 5012)
±0.005 °C at 300 °C (oil 5017)

Uniformity

±0.002 °C at 40 °C (water)
±0.004 °C at 100 °C (oil 5012)
±0.012 °C at 300 °C (oil 5017)

Temperature Setting

Digital display with push-button data entry

Set-Point Resolution

0.01 °C; high-resolution mode, 0.00018 °C

Display Temperature Resolution

0.01 °C

Digital Setting Accuracy

±1 °C

Digital Setting Repeatability

±0.02 °C

Heaters

350 and 1050 watts

Access Opening
(call for custom openings)

127 x 254 mm (5 x 10 in)

184 x 324 mm (7.25 x 12.75 in)

Depth

305 mm (12 in)

464 mm (18.25 in)

337 mm (13.25 in)

Wetted Parts

304 stainless steel

Power

115 VAC (±10 %), 50/60 Hz, 10 A or 230 VAC (±10 %), 50/60 Hz, 5 A, specify

Volume

27 liters (7.2 gallons)

42 liters (11.2 gallons)

Weight

32 kg (70 lb.)

36 kg (80 lb.)

Size (HxWxD)

648 x 406 x 508 mm
(25.5 x 16 x 20 in)

813 x 406 x 508 mm
(32 x 16 x 20 in)

699 x 483 x 584 mm
(27.5 x 19 x 23 in)

Automation Package

Interface-it software and RS-232 computer interface are available for setting bath temperature via remote computer. For IEEE-488, add the 2001-IEEE to the automation package.

External cooling required for operation below 40 °C. Cooling coils are built into the bath walls. Tubing ports are accessible at the back of the bath for circulating chilled fluid or shop air to boost cooling.

Ordering Information

6020

Standard Bath, 40 °C to 300 °C

6022

Standard Bath, 40 °C to 300 °C, deep

6024

Standard Bath, 40 °C to 300 °C, high capacity

2001-6020

Automation Package for 6020

2001-6022

Automation Package for 6022

2001-6024

Automation Package for 6024

2001-IEEE

Add for IEEE-488 (requires Automation Package)

2007

Access Cover, 127 x 254 mm (5 x 10 in), SST (6020, 6022)

2009

Access Cover, 184 x 324 mm (7.25 x 12.75 in), Stainless Steel (6024)

2070

Bath Cart, 6020, 6022 (312 mm [12.3 in] H)

2072-2450

Bath Cart, 6024 (216 mm [8.5 in] H)

2023

Fast-Start Heater, 419 mm (16.5 in) (6022)

2024

Fast-Start Heater, 343 mm (13.5 in) (6020, 6024)

2069

8X Magnifier Scope, with mounts
